Technical Specifications

PCI Express x16 (gold finger) to x16 Slot Gen 3 Riser Card Extension Cable

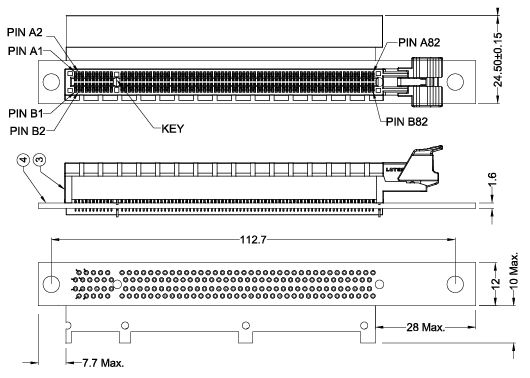

Connector:

PCIe x16 Connector (gold finger)

PCIe x16 slot riser card

CB-00680CB-00657

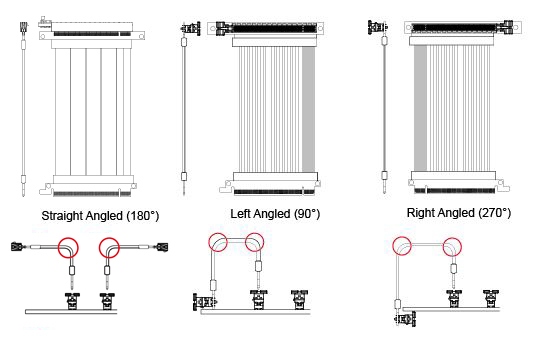

Orientation:

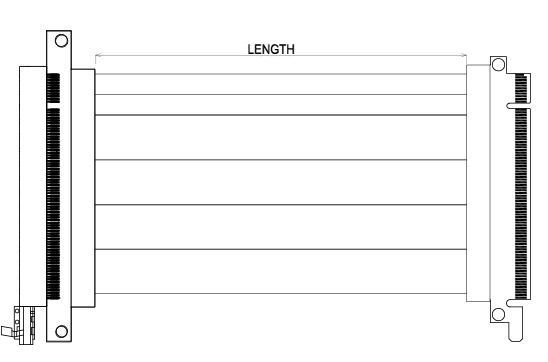

Part No. LENGTH Orientation
CB-00657-15 150mm Left Angled (90°)
CB-00657-20 200mm Left Angled (90°)
CB-00657-25 250mm Left Angled (90°)
CB-00657-38 380mm Left Angled (90°)
CB-00657-30 300mm Left Angled (90°)
CB-00657-A0 1000mm Left Angled (90°)
CB-00683-15 150mm Right Angled (270°)
CB-00683-20 200mm Right Angled (270°)
CB-00683-25 250mm Right Angled (270°)
CB-00683-38 380mm Right Angled (270°)
CB-00683-30 300mm Right Angled (270°)
CB-00680-15 150mm Straight Angled (180°)
CB-00680-20 200mm Straight Angled (180°)
CB-00680-25 250mm Straight Angled (180°)
CB-00680-30 300mm Straight Angled (180°)
CB-00680-35 350mm Straight Angled (180°)
CB-00680-40 400mm Straight Angled (180°)
CB-00680-50 500mm Straight Angled (180°)
