Mini-SAS HD 4i Plug (SFF-8643 36P) U.2 Receptacle (SFF-8639 68P) Cable with SATA Power
Connector:
Mini-SAS HD 4i Plug (SFF-8643 36P)
| CB-S0027 | CB-S0027-A0 |
 |
 |
U.2 Receptacle (SFF-8639 68P)
| CB-S0027 | CB-S0027-A0 |
 |
 |
| Part No. | LENGTH | AWG | ohm |
| CB-S0027 | SFF-8639 68P to SFF-8643 36P : 650mm | 28 |
85 |
| SFF-8639 68P to SATA 15pin Power: 120mm | 18 | ||
| CB-S0027-A0 | SFF-8639 68P to SFF-8643 36P : 650mm | 30 |
85 |
| SFF-8639 68P to SATA 15pin Power: 120mm | 18 |

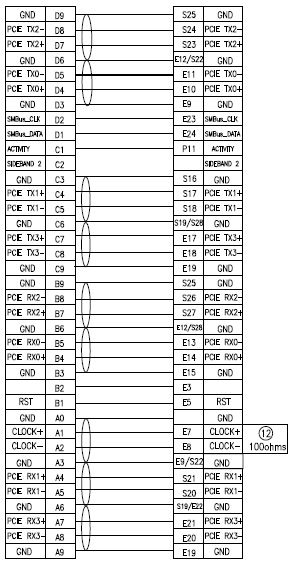

Pin Assignment:
| SFF-8643 | SFF-8639 |
 |
|
w/SATA 15 pin
