SlimSAS 8i 74pin (SFF-8654) to two SlimSAS 4i 38pin (SFF-8654) Right Angle Y-Cables
- SFF-9402 Reference Multi-Protocol Internal Cables for SAS and/or PCIe
- For SAS-4 (SFF-8654)/ Other Protocol (SFF-8654) x8 Connections only
- SlimSAS 8i 74pin (SFF-8654) Plug to two SlimSAS 4i 38pin (SFF-8654) Plug
- SAS Cable: UL20744, 30AWG, 85ohm

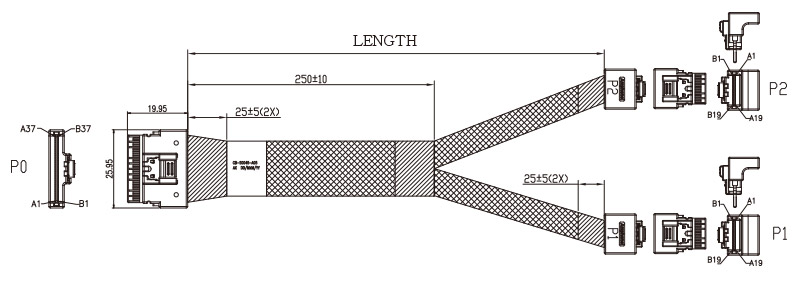

Connector:
P0: SlimSAS 8i 74pin (SFF-8654)
P1 or P2: SlimSAS 4i 38pin (SFF-8654)
Length:
| Part No. | LENGTH | AWG | Differential Impedance |
| CB-S0045-A05 | 0.5M | 30 | 85Ω |
Pin Assignment:
