PCIe Gen 4 External Mini-SAS HD (SFF-8674) 4x plug to External Mini SAS HD (SFF-8674) 4x plug 100ohm Cable
- Cable: 30AWG, 100ohm, 25Gbps
Connector:
External Mini-SAS HD 4x 36pin (SFF-8674)
Length:
| Part No. | LENGTH | AWG | Differential Impedance |
CB-S0074-B30-050 |
0.5M | 30 | 100Ω |
CB-S0074-B30-075 |
0.75M | 30 | 100Ω |
CB-S0074-B30-100 |
1M | 30 | 100Ω |
CB-S0074-B28-200 |
2M | 28 | 100Ω |
CB-S0074-B28-300 |
3M | 28 | 100Ω |

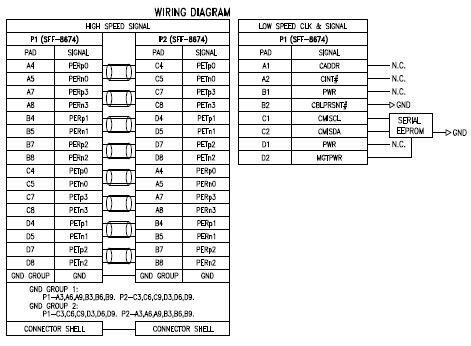

Pin Assignment:
