Highlights
  • Host Port: Two SATA Signal 7pin Connectors
  • Device Port: Two FireWire (IEEE 1394a) 6pin & USB B Type Connector
Introduction

Mirror Drive is a selectable hardware RAID enclosure for two 3.5" SATA HDD. A true hardware solution, Mirror Drive requires no software to be installed on your machine.

It provides 4 hardware RAID mode:

  • RAID 1 (Mirroring): for two disks with same capacity.
  • RAID 0 (Striping): for two disks with same capacity.
  • Spanning: for two disks with different capacity.
  • Non-RAID (JBOD).

RAID 1 (Mirroring):
By mirroring technique, Mirror Drive maintains data in two disk drives simultaneously and securely. If one drive fails, Mirror Drive automatically switches operations to the functional drive and alert the failure. Once a new HDD is installed to replace the defective drive, the Mirror Drive will automatic rebuild the entire HDD image in the background, while providing the un-interrupt data connection to the system

RAID 0 (Striping) and Spanning:
By striping/ spanning technique, Mirror Drive integrates two HDDs into a big drive.

Mirror Drive provides the cost-effective solution for data backup.

Features
  • Provides two mobile tray for 3.5" SATA HDD
  • SATA HDD direct connect to SATA cable (no converting P.C.B required)
  • Support both SATA (1.5 Gbit/sec) and SATA II(3.0 Gbit/sec)
  • Provides Keylock
  • One 40x40 mm cooling fan

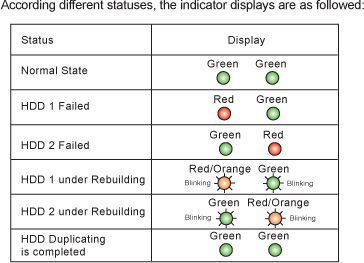

  • Error indicator LED and HDD Access LED for each SATA drive
  • Provides RAID setting switch in the rear panel
  • Provide 4 hardware RAID mode:
    • Raid 0 (Stripping)
    • Raid 1 (mirroring)
    • Span (big drive)
    • JBOD
  • Auto-Rebuilding function enables you to backup the hard disk off-line. (RAID 1)
  • Support On-Line Auto-Rebuilding (RAID 1)
  • No HDD size limitation
  • Windows ME/2000/XP/2003; MacOS 9.1 or higher; Linux MAC
Technical Specifications

UF2SATA35DMR combines three key components.
1). USB 2.0 & FireWire (IEEE 1394a) to SATA Bridge Board
2). Aluminum made housing
3). AC to DC Power Adapter

1). USB 2.0 & FireWire (IEEE 1394a) to SATA Bridge Board:

  • DC Power Connector: Walkman-type 2.0 mm DC Jack
  • HDD Power Connector: Two mini 4-pin Floppy Disk Drive like power connectors
  • USB 2.0 Port: One USB B-Type connector
  • USB Bus Transfer Rate: High Speed (480 Mbit) And Full Speed (12 Mbit)
  • USB Bus Power: Self Powered Mode Operation
  • FireWire Port: Two FireWire (IEEE 1394a) 6pin Connectors
  • 1394a PHY: Ti's TSB41AB2 1394a-2000 400Mbps PHY
  • 1394 Bus Transfer Rate: 100/200/400 Mbps
  • SATA Port: Two SATA Signal 7pin Connectors
  • SATA Transfer Rate: 150Mbytes/s

2). Aluminum made housing (Dual 3.5" Bays Enclosure) :

  • Provides two mobile tray for 3.5" SATA HDD
  • SATA HDD direct connect to SATA cable (no converting P.C.B required)
  • Support both SATA (1.5 Gbit/sec) and SATA II (3.0 Gbit/sec)
  • Provides Keylock
  • Error indicator LED and HDD Access LED for each SATA drive

  • Power Switch on the rear panel.
  • Provide a 40mm X 40mm cooling fan on the rear panel

3). AC to DC Power Adapter:

  • Input: Changeable AC power cord
  • Auto-switching
  • Input: 100~240Vac, 50~60Hz, 1.7A (Max)
  • Output: +12Vdc, 4.16A (Max)
  • Output: Standard Walkman-type 2.1 mm DC power plug
Hardware Requirements
  • Desktop PC: with either a built-in FireWire (IEEE 1394a) controller or a FireWire (IEEE 1394a) to PCI Host Adapter equipped with a external FireWire (IEEE 1394a) port.
  • Desktop PC: with either a built-in USB (1.0 or 2.0) controller or an USB (1.0 or 2.0) to PCI Host Adapter equipped with a external USB port.
  • Laptop PC: with either a built-in FireWire (IEEE-1394a) controller or a FireWire (IEEE-1394a) to CardBus PC Card equipped with a external FireWire (IEEE 1394a) port.
  • Laptop PC: with either a built-in USB (1.0 or 2.0) controller or an USB (1.0 or 2.0) to CardBus PC Card equipped with a external USB port.
Operating System Requirements
  • Windows ME/2000/XP/2003/Vista/7; MacOS 9.1 or higher; Linux
  • Driver Requirements
    • USB:
      • No driver installation for Windows ME, 2000, XP, 2003, Vista, 7, Mac OS and Linux.
    • FireWire:
      • No driver installation for Windows ME, 2000, XP, 2003, Vista, 7, Mac OS and Linux
Kit includes
  • UF2SATA35DMR Enclosure.
  • 6pin-to-6pin FireWire Cable 1.5m length.
  • A-to-B type USB 2.0 Cable 1.5m length.
  • AC 100 ~ 240 V to DC +12V/ 4.16A Power Adapter.
  • AC power cord 6 feet length.
  • Screws for two 3.5" HDD
  • T-shape Screw Driver
  • User's Manual
