Highlights
  • Host Bus: PCIe x1 Gen 2 (5 Gb/s) ; Low Profile PCI Form Factor
    • Compliant with PCI Express Base Specification Revision 2.1
  • 4-port (2 External + 2 Internal) USB 3.0 Host Controller (Fresco FL1100, USB IF TID 380000026)
    • Compliant with Universal Serial Bus 3.0 specification Revision 1.0
    • Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification Revision 1.0
    • Supports UASP (USB Attached SCSI Protocol)
  • USB 3.0 Cable Ports (A-type Receptacle, USB IF TID 360000145)
  • GoXtream™ Architecture
    • Switching fabric to sustain full bandwidth simultaneously for each USB3.0 port
    • No firmware necessary
  • WHQL certified driver support for Windows 8, Windows 7, Windows Vista and Windows XP
  • Linux xHCI support under Linux kernel version 2.6.31 and after
Introduction

The U3-PCIE1XG213 is USB 3.0 to PCI Express x1 Gen 2 host card. It fully integrates an Extensible host Controller Interface (xHCI) engine, a 4-port 5Gbps USB 3.0 transceiver, a PCI Express endpoint controller and a 5Gbps PCI Express transceiver. U3-PCIE1XG213 implements the Universal Serial Bus 3.0 Specification Revision 1.0 and the Extensible Host Controller Interface (xHCI) Specification Revision 1.0, and complies with the PCI Express Rev 2.1 Specification at 5Gbps data rate, and the PCI Local Bus Specification Revision 2.2. U3-PCIE1XG213 is backward compatible for operation with USB 2.0 and USB 1.1 devices.

The U3-PCIE1XG213 features GoXtream™ xHCI Accelerator Engine, which maps the xHCI standard directly into a set of parallel functional units, providing acceleration of all xHCI operations while maintaining compatibility with existing software driver models.
Technical Specifications

PCIe Host Bus
  • Single (x1) PCI Express Lane
  • Supports PCI Express Specification Revision 2.1 at 5GT/s
  • Supports PCI Bus Power Management Interface Specification revision 1.2
  • Support for Latency Tolerance Reporting (PCIe)
USB Features
  • Compliant with USB 3.0 Specification Revision 1.0
  • Compliant with Extensible Host Controller Interface (xHCI) Specification revision 1.0
  • 4 downstream USB ports support SS/HS/FS/LS data rates (5Gbps/480Mbps/12Mbps/1.5Mbps)
  • Supports UASP (USB Attached SCSI Protocol)
  • Supports xHCI debug capability
  • Support for Ultra High-performance isochronous applications
  • Support for Latency Tolerance Tolerance Messaging (USB)
Advanced Power Saving
  • Support all USB 3.0 Power States: U0, U1, U2 and U3
  • Support USB 2.0 Link Power management (LPM)
    • USB-IF LPM PDK Standard
  • PCIe Active State Power Management (ASPM) L0s and L1
USB3 cable lock mechanism
  • Provides the threaded holes for the jack-screws of USB 3.0 A Plug w/Jackscrew lock Cable

USB Bus Power Input

Power supply to the USB bus power is from SATA 15pin Power Connector
Number of Ports:
  • Two External USB 3.0 ports with Screw Holes for thumbscrew locking Type USB 3.0 Cable
  • USB 3.0 2-in-1 Internal Port (USB3 ICC A)
Remote wake-up

No

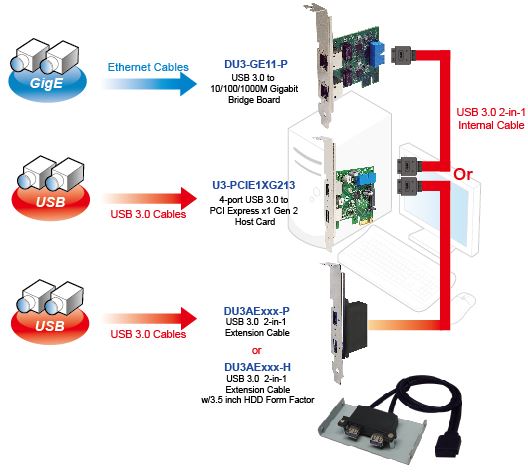

Applications

  • DU3-GE11 --- USB 3.0 to 10/100/1000M Giagbit Ethernet Bridge Board
  • DU3AExxx --- 2-port USB 3.0 Std-A Receptacle to 2-in-1 Female (10X2_19pin) Cable
Computer Platform
  • Computer with PCI Express slot (x1, x4, x8, x16)

    • Note:
    For the best performance (5.0 Gbps), U3-PCIE1XG213 should be installed in a PCIe Gen 2 compliant slot in the host computer.  Most computers have PCIe Gen 2 (5.0 Gbps) throughput on x8 or x16 slots.
    A PCIe Gen 1 compliant slot reaches up to 2.5 Gbps throughput.
Operating System Requirements
  • If OS is Windows 8 or later , there are inbox driver for Fresco USB 3.0 Host Controller.
  • Linux xHCI support under Linux kernel version 2.6.31 and after
  • USB 3.0 Host Drivers
    x86 (32-bit) and x64 (64-bit)
    • Windows XP
    • Windows Vista
    • Windows 7
    • Windows 8 and 8.1
Physical Dimensions
  • 67mm(W) x 64mm[120mm](H)
  • NW: 49g
Kit includes
  • U3-PCIE1XG213
  • Driver CD
Optional Accessories
  • Low Profile PCI Bracket (BR-00194-08-1020)
