Highlights
  • One single-lane Internal PCIe port (IOI Proprietary)
    • 10X2_19pin Header (Pitch=2.0mm)
    • 1-lane PCIe
  • Low profile PCI form factor (BR-00226-01)
Introduction

IPCIE1XCA01 is Internal PCI Express x1 Cable Adapter Card, it requires no additional software or drivers to operate.

Designed to overcome the limited PCIe connectivity of most desktop computers, the IPCIE1XCA01 can be quickly and easily set up for external expansion.

Technical Specifications



Primarily PCIe interface
  • 1-lane PCI Express

Secondary PCIe interface

  • One single-lane Internal PCIe port (IOI Proprietary)
    • 10X2_19pin Header (Pitch=2.0mm)

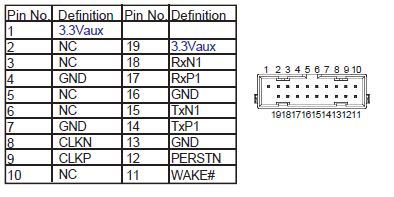

  • Pin Assignment



Computer Platform
  • Computer with PCI Express slot (x1, x4, x8, x16)

Note:
For the best performance (5.0 Gbps), It should be installed in a PCIe Gen 2 compliant slot in the host computer.  Most computers have PCIe Gen 2 (5.0 Gbps) throughput on x1, x4, x8 or x16 slots.
A PCIe Gen 1 compliant slot reaches up to 2.5 Gbps throughput

Physical Dimensions
  • 43.1(H)x68(L)mm
Applications

PCIe x1 to three PCI
Model No: IP1X-P32X30

  • IPCIE1XCA01
  • DB525-PCIE1XP32X30
  • One CB-00592

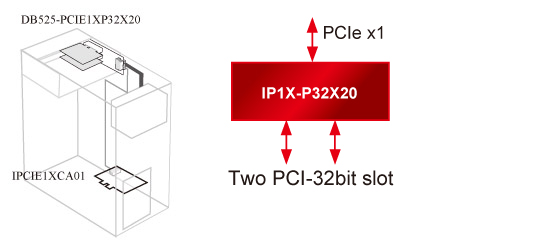

PCIe x1 to one PCI
Model No: IP1X-P32X20

  • IPCIE1XCA01
  • DB525-PCIE1XP32X20
  • One CB-00592

PCIe x1 to one PCIe x16 (x1 mode) (For Graphics Card Solution)
