Introduction

IP4X-PCIE4XG201 is Internal four PCIe x1 to PCIe x4 Gen 2 Switch Host Card.

Utilizing the standard PCI Express Switch, the 8-Lane/8-Port PCI Express Gen 2 (5 Gbps) Switch provides the most efficient fan-out solution for the following configuration:

Technical Specifications



Upstream PCIe interface
  • 4-lane PCI Express
    • PCIe Gen 1 (2.5GT/s)
    • PCIe Gen 2 (5.0GT/s)
Downstream PCIe interface
  • Two IOI Proprietary Dual-lane Internal PCIe Ports (PCIe-1~2)
    • 10X2_19pin Header (Pitch=2.0mm)
    • 2-lane PCIe (Two PCIe x1)
  • Each Dual-lane Internal PCIe Port
    • PCIe Gen 1 (2.5GT/s)
    • PCIe Gen 2 (5.0GT/s)
Key Features
  • Standards Compliant
    • PCI Express Base Specification r2.0 (Backwards compatible with PCIe r1.0a/1.1)
    • PCI Power Management Spec r1.2
    • Microsoft Vista Compliant
    • Supports Access Control Services
    • Dynamic link-width control
    • Dynamic SerDes Speed Control
  • High Performance
    • Non-blocking internal architecture
    • Full line rate on all ports
    • Cut-Thru latency: 140ns for Link widths of x4 to x1
    • Maximum Payload Size - 2,048 bytes
    • Read Pacing (intelligent bandwidth allocation)
    • Dual Cast
    • Dynamic Buffer Pool Architecture for faster credit updates
  • PCI Express Power Management
    • Link power management states: L0, L0s, L1, L2/L3 Ready, and L3 (with Vaux not supported)
    • Device power management states: D0 and D3hot
    • Active State Power Management (ASPM)
  • Quality of Service (QoS)
    • Two Virtual Channels (VC) per port
    • Eight Traffic Classes per port
    • Weighted Round-Robin Port & VC Arbitration

Lane Status LEDs

  • Blink: Gen 1 speed
  • Solid: Gen 2 speed
  • Upstream Lane Status LEDs
    • LED-Lane0: Upstream x1 Status LED
    • LED-Lane3: Upstream x4 Status LED
Computer Platform Requirements Desktop computer equipped with a PCIe 2.0/3.0 x4, x8, x16 slot
Computer Platform
  • Computer with PCI Express slot (x4, x8, x16)

Note:
For the best performance (5.0 Gbps), It should be installed in a PCIe Gen 2 compliant slot in the host computer.  Most computers have PCIe Gen 2 (5.0 Gbps) throughput on x4, x8 or x16 slots.
A PCIe Gen 1 compliant slot reaches up to 2.5 Gbps throughput

Physical Dimensions
  • 64.5(H)x81(L) mm
  • NW: 48.5g
Applications

Application : x4, x1, x1, x1, x1

1-1: PCIe x4 to four PCIe x1 slots
Model No: IP4X-2D1X

1-2: PCIe x4 to Quad Channel 8-port USB 3.0 Host Controllers
Model No: U3X4-PCIE4XE103

  • IP4X-PCIE4XG201
  • DU3X2-IPCIE2XG201
  • Two CB-00592

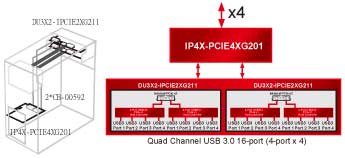

1-3: PCIe x4 to Quad Channel 16-port USB 3.0 Host Controllers
Model No: U3X4-PCIE4XE112

  • IP4X-PCIE4XG201
  • DU3X2-IPCIE2XG211
  • Two CB-00592

Kit includes

KIT: (IP4X-2D1X)

Optional Accessories
  • Low Profile PCI Bracket (BR-00226-01)
