Introduction

IPCIE4XCA01 is Internal PCI Express x4 Cable Adapter Card, it requires no additional software or drivers to operate.

Designed to overcome the limited PCIe connectivity of most desktop computers, the IPCIE4XCA01 can be quickly and easily set up for extending PCIe slot.

Technical Specifications



Primarily PCIe interface
  • 4-lane PCI Express

Secondary PCIe interface

  • Two IOI Proprietary Dual-lane Internal PCIe Ports (PCIe-1~2)
    • 10X2_19pin Header (Pitch=2.0mm)
    • 2-lane PCIe (PCIe x2)
  • Each Dual-lane Internal PCIe Port
    • PCIe Gen 1 (2.5GT/s)
    • PCIe Gen 2 (5.0GT/s)
    • PCIe Gen3  (8.0GT/s)



Computer Platform
  • Computer with PCI Express slot ( x4, x8, x16)
Physical Dimensions
  • 40(H)x92(L)mm
  • NW: 32.5g
Applications

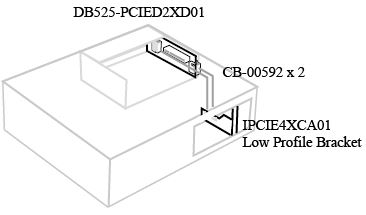

Example 1: To install the full-size PCIe Host Card into half-size (2U) workstation

You are able to install the full-size PCIe Host Card by using IPCIE4XCA01 and DB525-PCIED2XD01.

Example 2: For Multiple GPU (Standard 2-slot Graphics Card) Docking

You are able to install Multiple GPU (Standard 2-slot Graphics Card) by using IPCIE4XCA01 and DB525-PCIED2XD01.

DB525-PCIED2XD01 is PCIe x4 Add-On Card Docking System (5.25 inch ODD Form Factor).

PCIe x4 to PCIe x16 (x4 mode) slot



Optional Accessories
  • Low Profile PCI Bracket
    • S-BR-00248-00-1020
