Introduction

QIP4X-PCIE16XB01 is Internal PCIe (two SFF-8643 72pin) PCI Express x16 Bifurcation Riser Card.

PCI Express bifurcation means splitting the PCI Express bus into smaller multi-slots . For example, one x16 PCI-Express Port can be bifurcated into two x8 PCI-Express Ports, each of which can be further bifurcated into two x4 PCI-Express Ports, and so on. This can be achieved from BIOS level if you want to split an existing lane.

The PCI-Express Bifurcation mode allows users to take advantage of a single PCI-Express x16 slot, through the use of QIP4X-PCIE16XB01, and transform their PCI-Express slot into the following modes:

  • Two PCIe Slots (x8, x8)
  • Three PCIe Slots (x8, x4, x4)
  • Four PCIe Slots (x4, x4, x4, x4)

Please be noted that your mainboard needs to have PCIe bifurcation mode support.

Technical Specifications



Primarily PCIe interface
  • 16-lane PCI Express

Secondary PCIe interface

  • Two Mini-SAS HD SFF-8643 8i Connectors
    • Dual Port
    • 85ohm, 72pin (pitch=0.75)

Jumper for Bifurcation mode
  • JP1: Open JP2: Open
    x4, x4, x4, x4, x4
  • JP1: Short JP2: Open
    x8, x4, x4
  • JP1: Open JP2: Short
    x4, x4, x8
  • JP1: Short JP2: Short
    x8, x8



Computer Platform
  • Computer with PCI Express slot ( x16) supporrt PCIe bifurcation mode.

Note: Please verify with your mainboard manufacturer (such as Intel, Gigabyte, Supermicro, Portwell, Axiomtek, ASRock ...) to make sure the mainboard is bifurcated.

Physical Dimensions
  • 45(H)x145(L)mm
  • NW: 62g
Applications



Application 1: For Two PCIe Slots (x8, x8)

  • Two DB525-16XF018XXYY---Mini-SAS HD (SFF-8643) 8i (two 4i) plug to PCIe x16 (x8 mode) Slot Cable w/SATA 15pin Power



Application 2: For Three PCIe Slots (x8, x4, x4)

  • One DB525-16XF018XXYY---Mini-SAS HD (SFF-8643) 8i (two 4i) plug to PCIe x16 (x8 mode) Slot Cable w/SATA 15pin Power
  • One DB525-D8XF0147015---Mini-SAS HD (SFF-8643) 4i plug to PCIe x8 Slot (x4 mode) Cable w/SATA 15pin Power
+



Application 3:

3-1. For Four PCIe Slots (x4, x4, x4, x4)

  • Two DB525-D8XF0147015---Mini-SAS HD (SFF-8643) 4i plug to PCIe x8 Slot (x4 mode) Cable w/SATA 15pin Power
  • Two DIPCIE4XD01---Mini-SAS HD (SFF-8643) 4i plug to PCIe x4 Slot Board

3-2. For Four M.2 Socket Docking Board (x4, x4, x4, x4)

  • One DB35-NVME2X42 --- SFF-8639 to M.2 (PCIe x4) 4-in-1 Docking Board (3.5inch Form Factor)

3-3. For Four M.2 Socket Adapter Dongle (x4, x4, x4, x4)

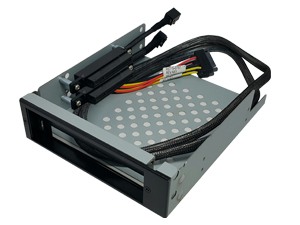

  • One DB35-DDM203CXXPYY --- Integrated two 2-in-1 Mini-SAS HD (SFF-8643) 4i plug to PCIe M.2 (NGFF) Adapter Dongles w/SATA 15pin Power (3.5 inch HDD Form Factor)
Optional Accessories
  • Low Profile PCI Bracket
    • S-BR-00248-11-1020
