Introduction

FWB2GOF01-LC is a FireWire 800 to GOF repeater featuring Texas Instrument's TSB81BA3 and Fiber Optical
Transceiver.

The GOF port is Gigabit Ethernet 850nm VCSEL (Multi-Mode) Transceiver with LC-Duplex Connector.

Utilizing an IEEE1394 PHY and optical transceiver, the FWB2GOF01-LC is capable of sending IEEE1394 signals across a LC/LC optical fiber cable up to 500 meters in length!

FWB2GOF01 can also be used as a standard IEEE1394b repeater, extending your signal an additional 4.5 meters. It's easy to setup and there is no configuration necessary, like all IEEE1394 compliant hardware.

Technical Specifications
PHY
  •  Fully supports provisions of IEEE P1394b-2002
  • Fully Compliant With Provisions of IEEE Std 1394-1995 for a High-Performance Serial Bus and IEEE Std 1394a-2000
  • Three IEEE Std 1394b Fully Compliant Cable Ports at 100M Bits/s, 200MBits/s, 400M Bits/s, and 800M Bits/s
  • Cable Ports Monitor Line Conditions for Active Connection To Remote Node
  • Cable Power Presence Monitoring
Fiber Optical
  • Supports Gigabit Ethernet 850nm VCSEL (Multi-Mode) Transceiver with LC-Duplex Connector
  • Compliant with Specifications for IEEE 802.3 Gigabit Ethernet (1.25Gbd) 1000BASE-SX
  • Maximum link lengths:
    • 220 m Links in 62.5/125 μm MMF 160 MHz*km Cables
    • 275 m Links in 62.5/125 μm MMF 200 MHz*km Cables
    • 500 m Links in 50/125 μm MMF 400 MHz*km Cables
    • 550 m Links in 50/125 μm MMF 500 MHz*km Cables
  • Class 1 Laser International Safety Standard IEC 825 Compliant

Number of Ports
  • Two Bilingual IEEE Std 1394b-2002 Cable Ports (with Jackscrew Lock Holes)
  • One GOF(LC-Duplex) Port

Power Connector
  • Walkman-type 2.0 mm DC Jack
  • Power Input Range: DC 8 ~ 30V ( max. 2.0A)
Power Consumption Less than 3 Watts.
IEEE 1394
Power Class
  • FWB2GOF01 was designed with 1394 power class 4 (PC0 ~PC2 = 100).
  • FWB2GOF01 is a bus-powered device, it could be powered from DC Jack/ FireWire (IEEE 1394) bus and will repeat the
    power to FireWire (IEEE 1394) bus.
  • Each IEEE 1394 (FireWire) port is protected by one 1.35A/33V Fuse.
Environmental
Condition
  • Operating Temperature: 10°C~40°C (50°F~104°F)
  • Relative Humidity: 10%~85% Non-condensing

Physical Dimensions
  • 93(W) x 62.17(D) x 21.46(H)mm
Applications

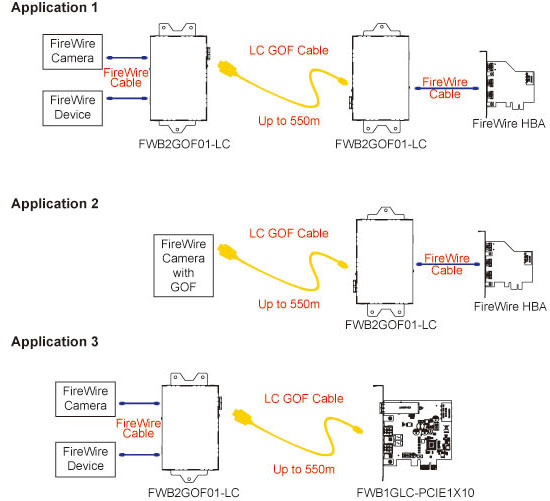

The FWB2GOF01 is ideal for professional audio/video transmission applications such as broadcasting, scientific research, military, industry vision control, medical monitoring systems, etc.

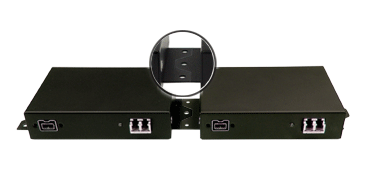

Installation 1

Installation 2

Certifications
  • CE Test: Pass
  • FCC Test : Pass



Kit includes
  • FWB2GOF01 optical repeater.
  • AC to DC power adapter and power code. (optional)
    • AC to DC Power Adapter (12V/5A)

Note: Optical cable and Firewire cables are not included.
