• Two Bilingual IEEE Std 1394b-2002 Cable Ports
  • Supports Bilingual Plug port with Jackscrew Lock Type 1394b Cable
• One Real 75 Ω BNC Cable Port

FWB-COAX7501 is a FireWire 800 (IEEE 1394b) to Coax Repeater. It's easy to setup and there is no configuration necessary, like all IEEE1394 compliant hardware.

FWB-COAX7501 is designed to simultaneously transmit and receive signals on a single 75Ω coax cable. It is ideally suited for IEEE 1394b-2002 connections over 75Ω coax cable at S800 data rate as specified in the 1394 TA Baseband Coax PMD Specification. It can also be used at S400, S200 and S100 data rates as illustrated in below Table (Typical Equalization Performance).

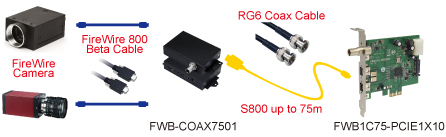

FWB-COAX7501 is useful and economical for the Machine Vision and Surveillance market.

The advantages of the FWB-COAX7501 in these application are:

• Excellent EMI/RFI shielding of coax cable and the range achieved; it is a copper interconnect
• The auto-mute with low-power standby mode functionality gives comparable performance to
  the 1394TA spec 2004024 “PMD for Fiber Optic Wake-on-LAN”

Typical Equalization Performance

• Fully Supports Provisions of IEEE P1394b Revision 1.33+ at 1-Gigabit Signaling Rates
• Fully Supports Provisions of IEEE 1394a.2000 and 1394.1995 Standard for High Performance Serial Bus
• Fully Interoperable With Firewire., i.LINK., and SB1394., Implementation of IEEE Std 1394
• PHY Chip: TI TSB81BA3D.
• 1394 Bus Transfer Rate: 100/ 200/ 400/ 800 Mbps
• Device Interface: Provides Four Fully Backward Compatible, (1394a.2000 Fully Compliant) Bilingual P1394b Cable Ports at up to 800 Megabits per Second (Mbits/s)
• Number of ports:
  • Two Bilingual Cable Port (with Jackscrew Lock Holes)
  • One Real 75 ohm BNC Cable Port
• DC Power input Connector: Walkman-type 2.0 mm DC Jack
• Power Input Range: DC 8V~30V, max. 3A
• Power Consumption: Under 3 Watts.
• IEEE 1394 Power Class:
  • FWB-COAX7501 was designed with 1394 power class 4 (PC0 ~ PC2 = 100).
  • FWB-COAX7501 is a bus-powered device, it could be powered from DC Jack/ FireWire (IEEE 1394) bus and will repeat the power to FireWire (IEEE 1394) bus.
  • Power Class Descriptions: Node may be powered from the bus for the PHY only using up to 3W and may also provide power to the bus. The amount of bus power that it provides can be found in the configuration ROM. * Each IEEE 1394 (FireWire) port is protected by one 1.35A/33V Fuse.
• Power LED and Link LED

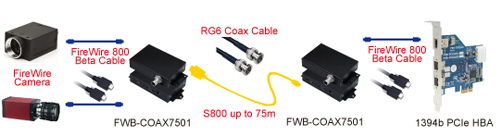

• Cable extension
• Two more ports
• Provide power to the 1394 bus

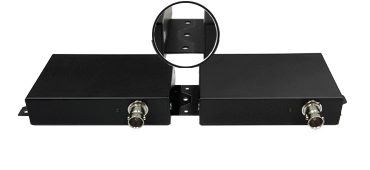

• Provide a metal bracket for fixing the FWB-COAX7501.

• 92 (W) x 62 (D) x 20.6 (H) mm

• FWB-COAX7501 Repeater
• PS-00035 --- AC to DC Power Adapter
  • Input：100~240 VAC /47~63 Hz
  • Output：+24VDC/2.7A
• AC power cord 6 feet length (option)
  • North America Plug (NEMA 5-15) --- CB-00260-02
  • Europe Plug (CEE 7-VII Schuko) --- CB-00264
  • British Standard Plug (BS 1363) --- CB-00103
  • Australia Plug (AS3112) --- CB-00272
• Three SC-00018 ---Screws (PTS-1 2.6*10 )
• PK-MA203 --- Manual
