• Supports USB 3.0 data transfer rate up to 5Gbps
• Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
• Supports one upstream port and four downstream ports

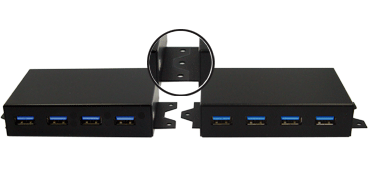

• Metal Case with Fixing Bracket

The U3H401E is a high-performance Universal Serial Bus (USB) 3.0 Hub.

U3H401E allows a single USB port to be used by up to four high-bandwidth USB 3.0 devices simultaneously.

U3H401E allows for a maximum data transfer rate of up to 5Gbps, or ten times the throughput available to USB 2.0 based devices. Other enhancements provide for improved interaction between device and host controller, including important advancements in power management.

One upstream port and four downstream ports support not just SuperSpeed transfer, but are also backwards compatible with previous USB specifications and offer support for Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) traffic.

• Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
• Compliant to Universal Serial Bus Specification Revision 2.0
• 4 (max.) downstream facing ports. (Right angle USB A receptacle connector)
• Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
• Upstream port (Right angle USB B receptacle connector)
• In-house USB PHY employing advanced CMOS process to consume less power
• DC power input: Walkman-type 2.0mm DC Jack (Min. +5V/2.5A, Max. +5V/4.5A)
• Supports individual mode for power enable and over current detection on each down-stream port

• Support Microsoft Windows 7, Vista, XP, 2003, 2000, and ME
• Support Mac OS 10.X
• Support various Linux kernels

• Metal Case with Fixing Bracket
• 21.46(H) x 93 (W) x 62.17 (D) mm

Application 1

Application2

• U3H401E USB 3.0 4-port HUB
• CB-00537--- USB3.0 A/M to B/M Type Cable with Jackscrews L=1M
• Power Supply (option)
  • PS-00034
    • Power Supply: 20W
    • Input: 100 ~ 240 Vac / 47 ~ 63 Hz
    • Output: +5V / 4A
    • AC power cord 6 feet length (option)
      • North America Plug (NEMA 5-15) --- CB-00260-02
      • Europe Plug (CEE 7-VII Schuko) --- CB-00264
      • British Standard Plug (BS 1363) --- CB-00103
      • Australia Plug (AS3112) --- CB-00272
  • PS-00039
    • Power Supply: 25W
    • Input: 100 ~ 240 Vac / 47 ~ 63 Hz
    • Output: +5V / 5A
    • AC power cord 6 feet length (option)
      • North America Plug (NEMA 1-15) --- CB-00159
      • Europe Plug (EN 50 075) --- CB-00158
      • British Standard Plug (BS 1363) --- CB-00262
      • Australia Plug (AS3112) --- CB-00238
• Three SC-00018 ---Screws (PTS-1 2.6*10 )
• PK-MA197 --- Manual
