Introduction

U3RDA2B111 is an USB 3.0 Redriver, extending your USB 3.0 signals an additional 2~5 meters. It's easy to setup and there is no configuration necessary, like all USB compliant hardware. The device requires no external power sources and low power consumption.

Technical Specifications
  • Extending your USB 3.0 signals an additional 6 meters
  • USB 3.0 SuperSpeed (5Gbps) (USB 2.0 signals as well)
  • Bus powered, no external power source needed
  • Plug and Play
  • USB 3.0 Connector:
    • Side A: (Standard A-type Receptacle) USB3.0 cable lock mechanism

    • Side B: (Standard B-type Receptacle) USB3.0 cable lock mechanism

Physical Dimensions
  • 56.1mmx27mmx21mm
  • NW: 40g
Applications

Available Models

U3RDA2B111
With Metal Case

U3RDA2B111H

U3RDA2B111V

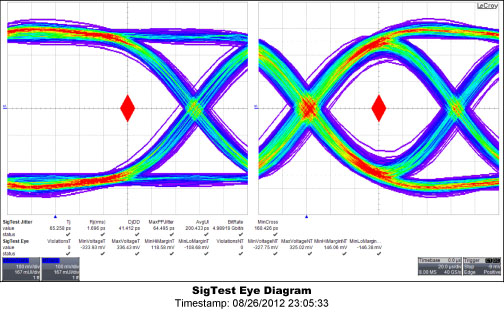

Eye Pattern Test Result

Download Test Report

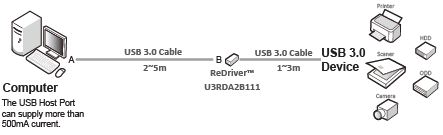

Test scenario:

Overall result: Pass

Kit includes
  • U3RDA2B111
