Highlights
  • Designed with VL812 (USB 3.0 Compliant Hub, TID# 330000026)
  • Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
  • Boost the USB Bus-Power Voltage
  • Provides USB 3.0 cable port lock mechanism
  • USB 3.0 cable port connectors
    • One upstream USB 3.0 cable port (Standard B-type Receptacle), TID# 360000002
    • One downstream USB 3.0 cable ports (Standard A-type Receptacle), TID# 360000003
  • No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support
Introduction

U3H101 is a high-performance one-port Universal Serial Bus (USB) 3.0 compliant Hub (Boost the USB Bus-Power Voltage), extending your USB 3.0 signals an additional 8 meters.

One upstream port and one downstream ports support not just SuperSpeed transfer, but are also backwards compatible with previous USB specifications and offer support for Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps) traffic.

U3H101 allows for a maximum data transfer rate of up to 5Gbps, or ten times the throughput available to USB 2.0 based devices. Other enhancements provide for improved interaction between device and host controller, including important advancements in power management.

Technical Specifications
  • USB 3.0 Compliant Hub
    • Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
    • Compliant to Universal Serial Bus Specification Revision 2.0
    • One up-stream port supports Super-speed(SS), high-speed (HS) and full-speed (FS) traffic
    • One down-stream ports support Super-speed(SS), high-speed (HS), full-speed (FS), and low-speed (LS) traffic
    • Supports USB 3.0 low power states
  • USB Bus Power
    • Designed with high-efficiency, synchronous step-up converter to guaranteed 2.1A output current at VOUT = 5V
  • Provides USB 3.0 cable port lock mechanism
    • Type 1 for 30U3H101
      • Upstream (Standard B-type Receptacle) USB3.0 cable lock mechanism
      • Downstream (Standard A-type Receptacle) USB3.0 cable lock mechanism
    • Type 2 for 31U3H101 above
      • Upstream (Standard B-type Receptacle) USB3.0 cable lock mechanism
      • Downstream (Standard A-type Receptacle) USB3.0 cable lock mechanism

Applications

Application 1:

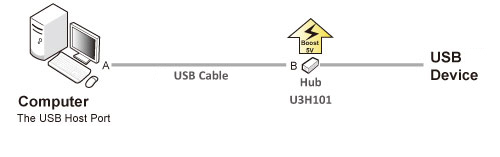

USB 3.0 Active Cable

Application 2 : Daisy-Chain up to 5pcs U3H101 KITs for 40m connectivity

Note: The greater the number of hubs or the length of a cable, the higher the electricity consumption.
This results in a decrease in electricity supplied to the terminal device.

USB 3.0 Cable

U3A0B2--- USB 3.0 A Plug to B Plug with Jackscrews (M2) Cable

U3A2B2--- USB 3.0 A Plug to B Plug with Jackscrews (M2) on both end Cable

USB 3.0 Active Cable

Active Cable A/M to B/M ---USB 3.0 A Plug to B Plug Active Cable with two Jackscrews (M2) on both ends , L=11~14M

USB 2.0 Cable

U2AP-BPS2--- USB 2.0 A Plug to B Plug with Jackscrews (M2) Cable

U2APS2-BPS2 --- USB 2.0 A Plug to B Plug with Jackscrews (M2) on both end Cable

Physical Dimensions
  • 27(W) x 21(H) x 65(D)mm
  • NW.:43.6g
Certifications
  • CE Test: Pass
  • FCC Test : Pass
  • VCCI Test: Pass



Kit includes

For USB 3.0

Kit 1: (1xU3H101-KIT1)

  • U3H101
  • U3A0B280100 --- USB 3.0 A Plug to B Plug with Jackscrews (M2) Cable, L=8M

Kit 2: (1xU3H101-KIT2)

  • U3H101
  • U3A2B280100 --- USB 3.0 A Plug to B Plug with Jackscrews (M2) on both end Cable, L=8M

For USB 2.0

Kit 1: (1xU3H101-U2KIT1)

  • U3H101
  • CB-00569--- USB 2.0 A Plug to B Plug with Jackscrews (M2) Cable, L=11.5M

Kit 2: (1xU3H101-U2KIT2)

  • U3H101
  • CB-00571--- USB 2.0 A Plug to B Plug with Jackscrews (M2) on both end Cable, L=11.5M
