Highlights
  • Designed with USB 3.0 Compliant Hub, TID# 330000056
  • Supports USB 3.0 SuperSpeed (5Gbps), USB 2.0 Hi-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps)
  • Per Port Power Switching and Over-Current Notification
  • USB 2.0 Hub Features
    • Multi Transaction Translator (MTT) Hub: Four Transaction Translators
    • Four Asynchronous Endpoint Buffers Per Transaction Translator
  • 3.5" FDD Form Factor
  • No Special Driver Requirements; Works Seamlessly on Any Operating System With USB Stack Support
  • Provides USB 3.0 cable port lock mechanism
    • One upstream USB 3.0 cable port (Standard Micro-B type Receptacle Connector, USB IF TID 361000096)
    • Four downstream USB 3.0 cable ports (Standard A-type Receptacle Connector, USB IF TID 360000145)
  • Supports USB Battery Charging Specification Revision 1.2
Introduction

U3H417BE is a high-performance four-port Universal Serial Bus (USB) 3.0 compliant Hub.

U3H417BE allows for a maximum data transfer rate of up to 5Gbps, or ten times the throughput available to USB 2.0 based devices. Other enhancements provide for improved interaction between device and host controller, including important advancements in power management.

U3H417BE provides simultaneous SuperSpeed USB and High-Speed/Full-Speed connections on the upstream port and provides SuperSpeed (5Gbps) USB, High-Speed (480Mbps), Full-Speed (12Mbps), or Low-Speed (1.5Mbps) connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports High-speed or Full-speed/Low-speed connections, SuperSpeed USB connectivity is disabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports Full-speed/Low-speed connections, SuperSpeed USB and High-speed connectivity are disabled on the downstream ports.

Technical Specifications
  • USB 3.0 Compliant Hub, TID# 330000056
    • Upstream Port Supports SuperSpeed USB, High-Speed and Full-Speed Connections
    • Supports Four Downstream Ports
    • Each of the Four Downstream Ports Support SuperSpeed USB, High-Speed, Full-Speed/Low-Speed Connections
  • USB 2.0 Hub Features
    • Multi Transaction Translator (MTT) Hub: Four Transaction Translators
    • Four Asynchronous Endpoint Buffers Per Transaction Translator (TT)
  • Provides Upstream Connection status LEDs (SuperSpeed and High-Speed):
    • High-Speed status LED
      • Off = Hub in low/full speed mode
      • On  = Hub in high-speed mode
    • SuperSpeed status LED
      • Off = Hub not in SuperSpeed USB mode
      • On = Hub in SuperSpeed USB mode
  • Downstream Port Configuration:
    • Enabled all Downstream Port
    • Marked as Removable
    • Battery Charging
      • BC 1.2 CDP Mode (Upstream Port Connected)
      • DCP Mode (Upstream Port Unconnected)
        • BC 1.2 DCP
        • Chinese Telecommunications Industry Standard YD/T 1591-2009
        • D+/D- Divider Mode (5W)
  • U3H417BE1 Power
    • DC Power input Connector: Walkman-type 2.0 mm DC Jack
    • Power Input Range: DC 9 ~ 24V ( max. 5.0A)
  • U3H417BE2 Power
    • DC Power input Connector: MINI-COMBICON Header
    • Power Input Range: DC 9 ~ 24V ( max. 8.0A)
  • Self-powered operation.
  • Downstream USB Bus Power
    • Each downstream Port (P1 ~ P4) can supply up to 2.1A.
  • Supports Over-current detection and Individual power control.
  • Customizable vendor ID, product ID, and device ID.
  • USB 3.0 cable ports (Provides USB 3.0 cable port lock mechanism)
    • One upstream port (Standard Micro-B type Receptacle, USB IF TID 361000096)
    • Four downstream ports (Standard A-type Receptacle, USB IF TID 360000145)
Applications

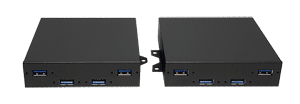

Available Models

U3H417BE1
Walkman-type 2.0 mm DC Jack

U3H417BE2
MINI-COMBICON Headers

Physical Dimensions
  • 3.5" FDD Form Factor
  • 25.4mm (H) x 101mm (W) x 90mm (D)
  • NW: 260.5g
Kit includes

U3H417BE1

Kit 1: ( U3H417BE1-xx)

  • U3H417BE1 4 port USB 3.0 Hub
  • U3A0MB220100 --- USB 3.0 A Plug to USB 3.0 micro-B Plug with Jackscrews (M2) Cable
  • PS-00025-03 --- AC to DC Power Adapter (12V/5A)
  • xx: AC power cord 6 feet length (option)
    • US: North America Plug (NEMA 5-15) --- CB-00260-02
    • EU: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • UK: British Standard Plug (BS 1363) --- CB-00103
    • AU: Australia Plug (AS3112) --- CB-00272
    • Australia Plug (AS3112) --- CB-00272

Kit 2: (U3H417BE1-xx2)

  • U3H417BE1 4 port USB 3.0 Hub
  • U3A2MB220100 ---USB 3.0 A Plug with two Jackscrews (M2 pitch:22mm) to Micro-B Plug with two Jackscrews (M2) Cable
  • PS-00025-03 --- AC to DC Power Adapter (12V/5A)
  • xx: AC power cord 6 feet length (option)
    • US: North America Plug (NEMA 5-15) --- CB-00260-02
    • EU: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • UK: British Standard Plug (BS 1363) --- CB-00103
    • AU: Australia Plug (AS3112) --- CB-00272

U3H417BE2

Kit 1: ( U3H417BE2-KIT1)

  • U3H417BE2 4 port USB 3.0 Hub
  • U3A0MB220100 --- USB 3.0 A Plug to USB 3.0 micro-B Plug with Jackscrews (M2) Cable

Kit 2: ( U3H417BE2-KIT2)

  • U3H417BE2 4 port USB 3.0 Hub
  • U3A2MB220100 ---USB 3.0 A Plug with two Jackscrews (M2 pitch:22mm) to Micro-B Plug with two Jackscrews (M2) Cable
