Introduction

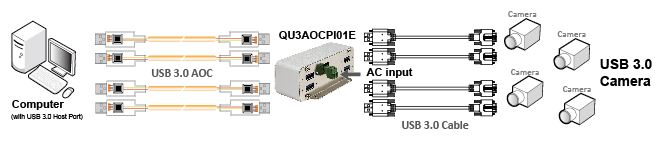

QU3AOCPI01E is a USB Bus-Power Injector for USB 3.x A.O.C (Active Optical Cable) long distance application.
It will not only supply 5V to power the USB 3.x A.O.C module but also USB device.

QU3AOCPI01E is a wide range input DC-to-DC converter uses the Synchronous Rectifier Controller to step-down a 9V to 24V input to 5V.
The input voltage source should be capable of supplying from 9VDC to 24VDC and rated for at least 3A of current.
For best results the input leads should be made with a wire of 22 gauge or larger wire.
The output load was configured to draw 5VDC between 0A and 8A.

QU3AOCPI01E integrated four sets (8-port) of USB 3.x Std-A receptacle connector to Std-A receptacle connector and supply 5V as USB bus-power to each USB 3.x Std-A receptacle connector.

Technical Specifications
USB Port
  • Standard A-type Receptacle
  • Provides USB 3.0 Vision Standard cable port lock mechanism

Power Input

  • Power Input Range: DC 9 ~ 24V ( max. 5.0A)
  • QU3AOCPI01E1 --DC Power input Connector: Walkman-type 2.0 mm DC Jack
  • QU3AOCPI01E2 --DC Power input Connector: MINI-COMBICON Header
Form factor
  • 95(W) x 35(H) x 37(D) mm
  • NW: 157.5g



Available Models

QU3AOCPI01E1
Walkman-type 2.0 mm DC Jack

QU3AOCPI01E2
MINI-COMBICON Headers

Related Products
Kit includes

QU3AOCPI01E1-xx

  • QU3AOCPI01E1--- USB Bus-Power Injector
  • PS-00025-03 --- AC to DC Power Adapter (12V/5A)
  • xx: AC power cord 6 feet length (option)
    • US: North America Plug (NEMA 5-15) --- CB-00260-02
    • EU: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • UK: British Standard Plug (BS 1363) --- CB-00103
    • AU: Australia Plug (AS3112) --- CB-00272

QU3AOCPI01E2

  • QU3AOCPI01E2 --- USB Bus-Power Injector
