Highlights
  • One PCIe x16 Slot (J2) for Target Cable Adapter
    • Rev 1.0: PCIe x16 Slot Through-Hole Type
    • Rev 1.1: PCIe x16 Slot PCI-E 4.0 SMT Type
  • One PCIe x16 Slot (J1) for PCIe Add-in Card
    • Rev 1.0: PCIe x16 Slot Through-Hole Type
      • The REFCLK is from Target Cable Adapter
    • Rev 1.1: PCIe x16 Slot PCI-E 4.0 SMT Type
      • The REFCLK could be from either Target Cable Adapter or on-board Clock Generator CFC (100MHz)
  • PCB Color
    • Rev 1.0: Green
    • Rev 1.1: Black
Introduction

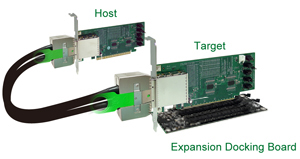

PCIEX16D01 is PCIe x16 Expansion Docking Board.

Requires an target adapter card in the host interface card slot. The PCIe x16 2-slot Docking Board supports up to a PCIe x1/ x4/ x8/ x16 add-in Card.

Technical Specifications
  • Upstream (J2): For Target cable adapter
    • Rev 1.0: PCIe x16 Slot Through-Hole Type
    • Rev 1.1: PCIe x16 Slot PCI-E 4.0 SMT Type
  • Downstream (J1): Support PCIe x1/ PCIe x4/ PCIe x8/ PCIex16 Add-on Card
    • Rev 1.0: PCIe x16 Slot Through-Hole Type
      • The REFCLK is from Target Cable Adapter
    • Rev 1.1: PCIe x16 Slot PCI-E 4.0 SMT Type
      • The REFCLK could be from either Target Cable Adapter or on-board Clock Generator CFC (100MHz)
  • Power Connector: ATX 24-Pin Power Connector
  • Fan Power Connector (12V Output):
    • JST compatible wafer 2pin (pitch=2.0mm) connector
    • JST compatible wafer 3pin (pitch=2.54mm) connector---only for Rev 1.1
  • Power Switch: JST compatible wafer 2pin (pitch=2.5mm) connector
    • For auto-switch you may use a cable to join both PCIEX16D01 and Target cable adapter Power Switch
  • Pin Header: Power switch / Power LED
  • J1 Slot PCIe REFCLK Setting Switch (SW1)--- only for Rev 1.1
    SW1-1 J1 PCIe REFCLK Note
    *ON From J2 The REFCLK is from Target Cable Adapter
    OFF CFC The REFCLK is from on-board Clock Generator
  • CFC Spread Setting Switch (SW1)--- only for Rev 1.1
    SW1-4 CFC Spread Setting
    OFF -0.5% (99.75MHz)
    *ON Off (100MHz)

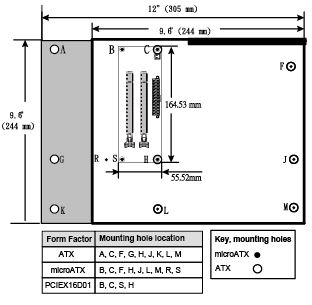

  • Dimensions
    • 55.52(W) x 164.53(L) mm
    • It suits for ATX & MicroATX Form Factor Mounting
    • NW: 58.3g

Applications



J1 Slot PCIe REFCLK is from the Target Cable Adapter
The following Target Cable Adapters should use this setting:

PCIe x4

  • EPCIE4XCA02-T---External PCI Express x4 to PCIe x4 Passive Cable Adapter Card
  • EPCIE4XRDCA01A-T --- External PCI Express x4 to PCIe x4 Gen 2 Active Cable Adapter Card

PCIe x8

  • EPCIE8XRDCA02-T---External PCI Express x8 to PCIe x8 Gen 2 Active Cable Adapter Card
  • EPCIE8XRDCA03A---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EP8X-PCIE8XG302-T---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Switch Host Card (for Target)

PCIe x16

  • EPCIE16XRDCA01-T---External PCI Express x16 to PCIe x16 Gen 3 Cable Adapter Card
  • EPCIE16XRDCA02A---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card

J1 Slot PCIe REFCLK is from on-board Clock Generator--- only for Rev 1.1
The following Target Cable Adapters should use this setting:

PCIe x8

  • EPCIE8XRDCA03---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card

PCIe x16

  • EPCIE16XRDCA02---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card

Note: This is dual clock application so the Host Cable Adapter must be PCIe Packet Switch type.
