• Direct Connect to SATA Drive
• Support both HDD and ODD
• Support HDD security feature
• DC Power Input: Big IDE 4-pin DC Power Connector

U2-SATA11 is an USB 2.0 to SATA bridge board. It has an USB high-speed device port and a SATA 1.5G host port. It received standard MassStorage Device Class (MSDC) SCSI command from USB host and translate into ATA/ATAPI command to SATA device. The maximum throughput can goes up to 30MB/sec.

USB to SATA Bridge Board

• USB 2.0:
  • Compliant with USB 2.0 specifications and pass USB certification.
  • Support USB high speed (480Mbps) and full speed transfer rate (12Mbps).
  • Support Mass Storage Device Class bulk only transfer.
  • Support USB vendor command (Control Endpoint) and SCSI vendor command.
  • Support USB host controller for UHCI, OHCI, EHCI mode.
• Serial ATA:
  • Compliant with Serial-ATA 1.0A specifications
  • Support Serial-ATA generation 1 transfer rate of 1.5Gb/s
  • Support spread spectrum in receiver
  • Support Serial-ATA power saving mode: Partial and Slumber mode.
  • Support PIO, MDMA and UDMA mode data transfer.
• Provide pin header for Power and SATA Activity Indicator LEDs
• Support HDD security feature.
• DC Power Input:
  • Big IDE 4-pin DC Power Connector

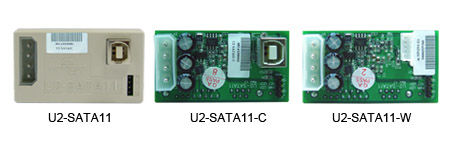

• U2-SATA11: With Standard USB B type connector and plastic cover.
• U2-SATA11-C: With Standard USB B type connector.
• U2-SATA11-W: With JST Compatible 5pin wafer (pitch = 2.0 mm)

• 6.40cm x 3.65cm x 2.83cm
• Direct Connect Vertical type

• Desktop PC: with either a built-in USB (1.0 or 2.0) controller or an USB (1.0 or 2.0) to PCI Host Adapter equipped with a external USB port.
• Laptop PC: with either a built-in USB (1.0 or 2.0) controller or an USB (1.0 or 2.0) to CardBus PC Card equipped with a external USB port.

• Windows 98SE/ME/2000/XP/2003; MacOS 10 or higher; Linux
• Driver Requirements
  • USB:
    • No driver installation for Windows ME, 2000, XP, 2003, Mac OS and Linux.
    • Driver available for Window 98 SE

• U2-SATA11 Bridge Board
• User's Guide
