Technical Specifications

DP plug to DP plug Cable with Latch on both end, Black, DP1.2

Model No. AWG Length
CB-00692-A15 28AWG 1.5m
CB-00692-A10 28AWG 1m
CB-00692-A20 28AWG 2m
CB-00692-A30 28AWG 3m
CB-00614 [Phased out] 30AWG 1.5m
CB-00614-01 [Phased out] 30AWG 1m
CB-00614-02 [Phased out] 30AWG 2m
CB-00692-02 [Limited Availability] 28AWG 2.2m
CB-00692-03 [Limited Availability] 28AWG 3m

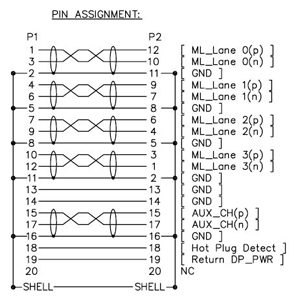

Pin Assignment
