MCIO 8x plug to two U.2 Receptacle (SFF-8639 68P) Cable with Power
- Upstream: MCIO 8x Plug 74P (SFF-TA-1016)
- Downstream: U.2 Plug (SFF-8639 68P) Receptacle Port
- Power: SATA 15pin Male Connector
Connector:
MCIO 8x plug
| A Series | D Series |
 |
 |

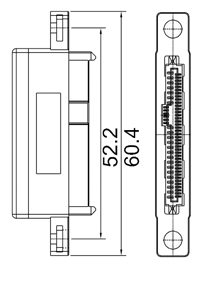

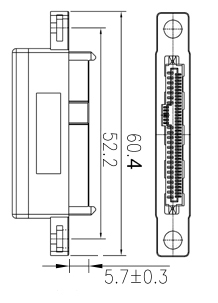

U.2 Receptacle (SFF-8639 68P) Receptacle Port
| A Series | D Series |
 |
 |
| Part No. | LENGTH | AWG | ohm |
| CB-S0081-A30-030 | SFF-8639 68P to MCIO 8x : 300mm | 30 |
85 |
| SFF-8639 68P to SATA 15pin Power: 200mm | 18 | ||
| CB-S0081-A30-050 | SFF-8639 68P to MCIO 8x : 500mm | 30 |
85 |
| SFF-8639 68P to SATA 15pin Power: 300mm | 18 | ||
| CB-S0081-A30-075 | SFF-8639 68P to MCIO 8x : 750mm | 30 | 85 |
| SFF-8639 68P to SATA 15pin Power: 300mm | 18 | ||
| CB-S0081-A30-100 | SFF-8639 68P to MCIO 8x : 1000mm | 30 | 85 |
| SFF-8639 68P to SATA 15pin Power: 300mm | 18 | ||
| CB-S0081-D29-030 | SFF-8639 68P to MCIO 8x : 300mm | 29 |
85 |
| SFF-8639 68P to SATA 15pin Power: 300mm | 18 | ||
| CB-S0081-D29-050 | SFF-8639 68P to MCIO 8x : 500mm | 29 |
85 |
| SFF-8639 68P to SATA 15pin Power: 300mm | 18 | ||
| CB-S0081-D29-060 | SFF-8639 68P to MCIO 8x :600mm | 29 | 85 |
| SFF-8639 68P to SATA 15pin Power: 300mm | 18 | ||
| CB-S0081-D29-075 | SFF-8639 68P to MCIO 8x : 750mm | 29 | 85 |
| SFF-8639 68P to SATA 15pin Power: 300mm | 18 | ||
| CB-S0081-D29-100 | SFF-8639 68P to MCIO 8x : 1000mm | 29 | 85 |
| SFF-8639 68P to SATA 15pin Power: 300mm | 18 |
Connector Pin assignment and Cable Assembly Wiring:
P1: MCIO 8x to P2/P3: U.2 Receptacle (SFF-8639 68P) Cable Assembly Wiring
P4/P5: SATA 15 pin Male to P2/P3: U.2 Receptacle (SFF-8639 68P) Receptacle Port Cable Assembly Wiring
