MCIO 8x plug to MCIO 8x Right Angle plug Cable
- Upstream: MCIO 8x Straight Plug 74P (SFF-TA-1016)
- Downstream: MCIO 8x Right Angle Plug 74P (SFF-TA-1016)
Connector:
MCIO 8x plug

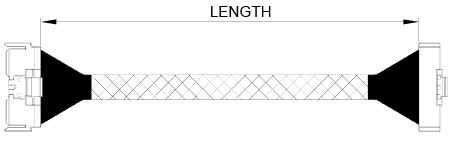

| Part No. | LENGTH | AWG | ohm |
| CB-S0095-D30-030 | 30cm | 30 | 85ohm |
| CB-S0095-D30-045 | 45cm | 30 | 85ohm |
| CB-S0095-D30-055 | 55cm | 30 | 85ohm |
| CB-S0095-D30-065 | 65cm | 30 | 85ohm |

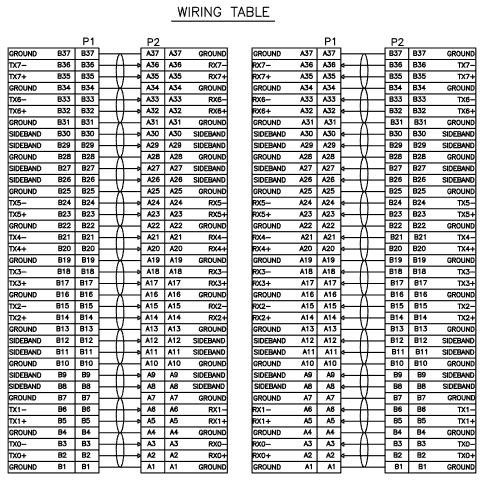

Connector Pin assignment and Cable Assembly Wiring:
Cable Assembly Wiring
