Technical Specifications

PCIe CEM Cable, PCIe x16 Slot (x8 mode) to MCIO 8x (SFF-TA-1016) Plug Cable (30AWG 85ohm) & Mini-Fit 6pin Power Plug Cable (18AWG)

Connectors:

  • PCIe x16 Slot (EP)

  • MCIO 8x (SFF-TA-1016) Plug (RC)

  • Mini-Fit 6pin Power Plug (12V&3.3V&3.3Vaux DC Input for PCIe Slot Power Rail)
Pin 1 12V Pin 4 3.3V
Pin 2 GND Pin 5 GND
Pin 3 3.3Vaux Pin 6 NC

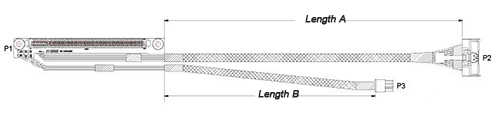

Length:

Part No. Length A (MCIO) Length B (Power) Note
P16S2-5160260A 60cm 60cm A8 pin-NC
P16S2-5160260A2 60cm 60cm A8 pin-PWRBRK#
P16S2-5160260A3 60cm 60cm A8 pin-CLKREQ#
