Highlights
  • 5.25" ODD Form Factor
  • Host Bus: Four 1-lane PCI Express
    • Compliant with PCI Express Base Specification Revision 2.0
    • PCIe Gen 2: 5 Gbps x 4
    • Two IOI Proprietary Dual-lane Internal PCIe Ports
      • 10X2_19pin Header (Pitch=2.0mm)
      • 2-Lane PCIe(Two PCIe x1)
  • Four independent USB 3.0 Host Controllers
    • Compliant with Universal Serial Bus 3.0 specification Revision 1.0
    • Compliant with Intel’s eXtensible Host Controller Interface (xHCI) specification Revision 1.0
    • USB 3.0 Host Controller supports Four downstream ports
  • Sixteen USB 3.0 Cable Ports (A-type Receptacle)
Introduction

DU3X2-IPCIE2XG211 integrated four PCI Express (PCIe) to USB 3.0 (4-Port) host Controllers. The DU3X2-IPCIE2XG211 provides sixteen USB 3.0 cable ports and two Dual-lane Internal PCIe Ports (IOI Proprietary) in connection to the PCIe cable adapter (E&IP4X-PCIE8XG201, QU3IP4X-PCIE8XG201).  Designed with the standard 5.25" ODD Form Factor, DU3X2-IPCIE2XG211 enables the user to have sixteen USB 3.0 cable ports for more USB 3.0 connectivity.


Technical Specifications
PCI Express
(IOI Proprietary)
  • Two Dual-lane Internal PCIe Ports (IOI Proprietary)
    • 10X2_19pin Header (Pitch=2.0mm)
    • PCIe x2 (Two PCIe x1)
  • Throughput of each lane
    • PCIe Gen 2: 5 Gbps
  • Compliant with PCI Express Base Specification Revision 2.0
USB Features
  • Compliant with USB 3.0 Specification Revision 1.0
  • Compliant with Extensible Host Controller Interface (xHCI) Specification revision 1.0
  • 16 downstream USB ports support SS/HS/FS/LS data rates (5Gbps/480Mbps/12Mbps/1.5Mbps)
  • Supports UASP (USB Attached SCSI Protocol)
  • Supports xHCI debug capability
  • Support for Ultra High-performance isochronous applications
  • Support for Latency Tolerance Tolerance Messaging (USB)
USB Data Transfer Rate
  • Low-speed (1.5 Mbps)
  • Full-speed (12.0 Mbps)
  • High-speed (480.0 Mbps)
  • Super-speed (5.0 Gbps)
Number of Ports

Sixteen USB 3.0 (Standard A-type Receptacle) cable ports (Provides USB 3.0 cable port lock mechanism)

USB Bus Power Input (5V & 12V)

Either Big IDE 4-pin DC Power Connector
or/and SATA 15pin Power Connector

Applications

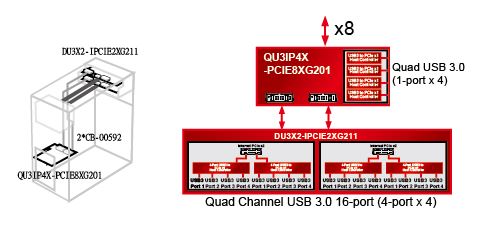

PCIe x8 to Quad USB 3.0 & Quad Channel 16-port USB 3.0 Host Controllers

PCIe x8 to ePCIe x4 & Quad Channel 16-port USB 3.0 Host Controllers

Physical Dimensions
  • 5.25" ODD Form Factor
  • 146.6(W) x 42(H) x 109(D) mm
  • NW: 380g
