Introduction

U31RT01C is a high-performance USB 3.1 Gen 2 (10G) Type-C Repeater (Re-timer & Re-driver) Cable, extending the distance for either USB 3.1 DFP (Down Facing Port) or UFP (Up Facing Port).

It follows USB 3.1 standard specification, supporting USB 3.1 Gen 1 and Gen 2, designing with advance adaptive CTLE (Constant Time Linear Equalization)  and CDR (Clock and Data Recovery) for receiver circuit and transmit de-emphasis, pre-shooting driver, eliminating input jitter and ISI to suppress the noise output.


Technical Specifications
  • Compliant with Universal Serial Bus 3.1 Rev1.0
  • Bus bandwidth up to 10Gbps
  • USB 3.1 Gen 2 connection: Support SuperSpeedPlus Re-timer
  • USB 3.1 Gen 1 connection: Support SuperSpeed Re-driver
  • Transmitter and Receiver equalize
  • Noise and input jitter suppression
  • Compensate channel loss by transmit equalizer
  • USB Type-C Plug to Type-C Receptacle extension
    • One USB 3.1 Type-C Plug
      • Provides USB 3.1 Tyep-C Jackscrews
    • One USB 3.1 Type-C Receptacle Port
      • Provides USB 3.1 Tyep-C cable lock mechanism

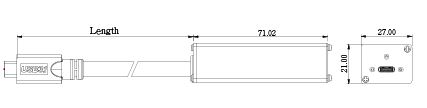

Length:

Part No. Length Note
U31RT01C030700 3m NW:337.2g
