Introduction

PCIE-8639M is PCIe x4 Slot to SFF-8639 Plug Adapter. PCIE-8639M is an useful solution for converting PCIe AIC (Add-In Card) form factor NVMe SSD (Solid-State Drive) module to have SFF-8639 plug device interface.
You can install PCIe AIC form factor NVMe SSD module into the PCIE-8639M then insert it into a system equipped with SFF-8639 receptacle connector supporting PCIe based interface.
No additional software or drivers are needed.
Technical Specifications



Upstream Connector
  • SFF-8639 68pin Unshielded Plug Connector
    • Single Port SATA
    • 4-Lane PCIe
Downstream Connector
  • PCIe x4 Slot
Power
  • 3.3Vaux and 12V Supply Rail

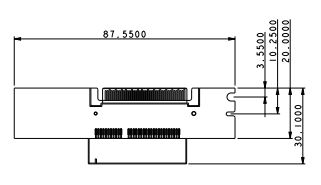

Dimensions
  • 100.83 x 20mm
  • NW:13g
uint:mm
Application

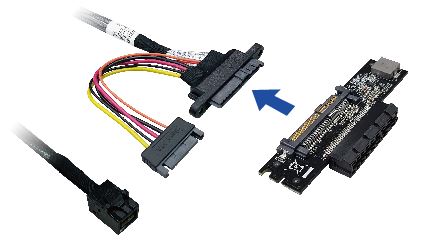

U2S2-MSASHD36P + PCIE-8639M = Mini SAS HD 4i Plug (SFF-8643 36P) to PCIe x4 Slot

Fixed Bracket (S-BR-00251-00-9000) for PCIe Card
Related Products
  • CB-S0018 --- Mini SAS HD 4i Plug (SFF-8643 36P) to U.2 Receptacle (SFF-8639 68P) 85ohm Cable with Power

  • CB-S0042---Mini SAS HD 4i Plug (SFF-8643 36P) to U.2 Receptacle (SFF-8639 68P) 85ohm Cable with Power

  • CB-S0053---SlimSAS 8i (SFF-8654 74P) plug to two U.2 Receptacle (SFF-8639 68P) 85ohm Cable with SATA Power

  • CB-S0081---MCIO 8x plug to two U.2 Receptacle (SFF-8639 68P) 85ohm Cable with SATA Power
Kit includes

PCIE-8639M

  • PCIE-8639M

PCIE-8639M-P

  • PCIE-8639M
  • S-BR-00251-00-9000---Fixed Bracket for PCIe Card
