Highlights
  • 4U 19-inch rack mount chassis
  • Five PCIe Gen 4 x16 Slots
    • One PCIe x16 Slot (J5) for Target Cable Adapter
    • Four PCIe x16 (x4 mode) Slots (J1~J4) for Add-in Cards
      • Support 4 double width GPU Cards
  • Built-in 1200W AC to DC Switching Power Supply
Introduction

ED41-5A-P1 is a Standard 4U 19-inch rack mount chassis for External PCIe x16 to four PCIe x16 (x4 mode) Slots Docking.

Requires an target adapter card in the host interface card slot. The PCIe x16 5-slot Docking supports up to 4 double width GPU Cards .

The ED41-5A-P1 expands PCI Express connectivity from your desktop computer, enabling seamless, high performance, and reliable control of up to four remote PCIe devices.

No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.

Note: If you plan to install 4 GPU cards, please ensure that your motherboard supports up to 4 GPU cards.
Technical Specifications
Model No. ED41-5A-P1
Rack Units
  • 4U

Construction
  • Heavy Duty Cold Rolled Electroplated Steel
Expansion Slot
  • 10 full length Expansion Slots
    • Five PCIe Gen 4 x16 Slots
      • One PCIe x16 Slot (J5) for Target Cable Adapter
      • Four PCIe x16 (x4 mode) Slot (J1~J4) for PCIe Add-in Card
        • Support dual slot/double width GPU Cards
Switch
  • J1 ~J4 Slot PCIe REFCLK Setting Switch
  • SMbus Slave Address Setting Switch
LED (Front)
  • DC Power LED
Drive Bay
  • Two 5.25 inch External Drive Bays
Cooling Units
  • Two (92mm=51.5CFM ea.) Fans (Front )
  • One (80mm=41CFM ea.) Fan (Back)
Power Supply
  • P1(PS-00059)
    • Power Supply: 1200W
    • AC Input: Voltage:100-240VAC, Frequency: 60-50Hz
    • DC Output:+12V/100A, +5V/25A, +3.3V/25A, +5VSB/3A, -12V/0.3A

Dimensions
  • 4U 19-inch rackmount chassis
    482.6(W) x 177(H) x 408.8(D)mm
  • NW: 12.5KG
Applications

Note: The Target Cable Adapter must have PCIe REFCLK output.
If you use Target Cable Adapter as below, please be noted that your mainboard needs to have PCIe bifurcation mode support.

  • EPCIE16XRDCA02A---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector
  • EPCIE16XG4RDCA02---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector

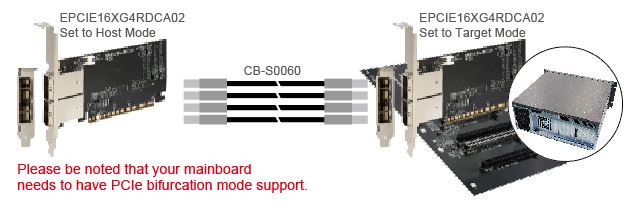

ED41-5A-P1HB1 + CB-S0060

  • HB1--- EPCIE16XG4RDCA02 (Target) + EPCIE16XG4RDCA02 (Host)

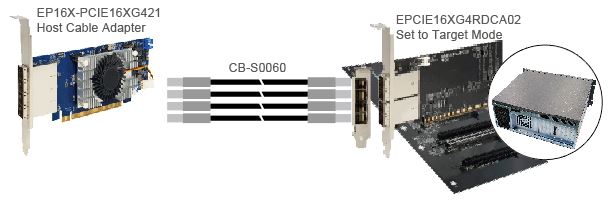

ED41-5A-P1HB3 + CB-S0060
Kit includes

ED41-5A-P1xy

  • xxx: Target Cable Adpater
    • HA0: EPCIE16XRDCA02A (Target)
    • HA1: EPCIE16XRDCA02A (Target) + EPCIE16XRDCA02A (Host) (Please be noted that your mainboard needs to have PCIe bifurcation mode support.)
    • HB0: EPCIE16XG4RDCA02 (Target)
    • HB1: EPCIE16XG4RDCA02 (Target) + EPCIE16XG4RDCA02 (Host) (Please be noted that your mainboard needs to have PCIe bifurcation mode support.)
    • HB3: EPCIE16XG4RDCA02 (Target) + EP16X-PCIE16XG421 (Host)
  • y: AC power cord 6 feet length
    • U: North America Plug (NEMA 5-15) --- CB-00260-02
    • E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • K: British Standard Plug (BS 1363) --- CB-00103
    • A: Australia Plug (AS3112) --- CB-00272

Example:

ED41-5A-P1U

  • y: U: North America Plug (NEMA 5-15) --- CB-00260-02

ED41-5A-P1HB0U

  • x: HB0--- EPCIE16XG4RDCA02
  • y: U: North America Plug (NEMA 5-15) --- CB-00260-02

ED41-5A-P1HB1U

  • x: HB1--- EPCIE16XG4RDCA02 (Target) + EPCIE16XG4RDCA02 (Host)
  • y: U: North America Plug (NEMA 5-15) --- CB-00260-02

ED41-5A-P1HB3U

  • x: HB3--- EPCIE16XG4RDCA02 (Target) + EP16X-PCIE16XG421 (Host)
  • y: U: North America Plug (NEMA 5-15) --- CB-00260-02
