Highlights
  • PCIe x16 Slot (Metal-Reinforced Type)
    • Support Full-length Add-in Card
    • Support 3-Slot GPU Card
  • Power Supply: 600W
Introduction

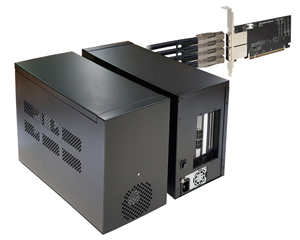

ED11-2B-P1 is PCIe x16 Expansion Docking Enclosure.
The PCIe x16 2-slot Docking Board (PCIEX16D11) provides two PCIe x16 Slots (one for Target Cable Adapter and one for Add-in Card).
ED11-2B-P1 expands PCI Express connectivity from your desktop computer, enabling seamless, high performance, and reliable control of PCIe Add-in Card.
No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.
Designed to overcome the limited PCIe connectivity of most desktop computers, the ED11-2B-P1 can be quickly and easily.

Technical Specifications

ED11-2B-P1

Indicator LEDs Power LED (Red)
Cooling Fan 8cm x 8cm
Power Power Switch (ON/OFF)

Power Supply

  • P1: PS-00060
  • Input: AC 100-240V, 50-60Hz
  • Output:
    +5V/15A, +3.3V/15A ( The maximum combined load on +3.3V and +5V outputs shall not exceed 80W.)
    +12V/50A (The +12V maximum load shall not exceed 600W)
  • Power Plug:
    • PCIe Graphics Card 8pin x 2 pcs
    • PCIe Graphics Card 8(6+2)pin x 2 pcs

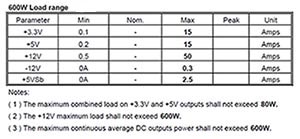

  • Load range

  • AC power cord 6 feet length (option)
    • North America Plug (NEMA 5-15) --- CB-00260-02
    • Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • British Standard Plug (BS 1363) --- CB-00103
    • Australia Plug (AS3112) --- CB-00272

Docking Board

  • 2B: PCIEX16D11
  • Slot1
    • PCIe x16 Slot (Metal-Reinforced Type)
      • Support Full-length Add-in Card
      • Support 3-Slot GPU Card
  • Slot2
    • PCIe x16 Slot
      • For Target Cable Adapter
Form Factor

15 x 36.5 x 23(H) cm
N.W, 4.1KG


Applications





Slot1 PCIe REFCLK is from the Target Cable Adapter

PCIe x4

  • EPCIE4XCA02-T---External PCI Express x4 to PCIe x4 Passive Cable Adapter Card
  • EPCIE4XRDCA01A-T --- External PCI Express x4 to PCIe x4 Gen 2 Active Cable Adapter Card
    • Provide PWR ON connector
  • CB-00485-A : External PCIe x4 Cable

PCIe x8

  • EPCIE8XRDCA03A---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector
  • EPCIE8XG4RDCA01---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector
  • CB-S0060 : PCIe Gen 4 External Mini-SAS HD (SFF-8674) 4i plug with sideband Cable

PCIe x16

  • EPCIE16XRDCA02A---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector
  • EPCIE16XRDG4CA02---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
    • Provide PWR ON connector
  • CB-S0060 : PCIe Gen 4 External Mini-SAS HD (SFF-8674) 4i plug with sideband Cable


Kit includes

ED11-2B-P1xx

  • xx: AC power cord 6 feet length
    • US: CB-00260-02 -- North America Plug (NEMA 5-15)
    • EU: CB-00264 -- Europe Plug (CEE 7-VII Schuko)
    • UK: CB-00103 -- British Standard Plug (BS 1363)
    • AU: CB-00272 -- Australia Plug (AS3112)
