ED01-4A-P1 External PCIe x16 Gen 5 Expansion Enclosure

Highlights

Supports five PCI Cutouts
PCIe x16 Gen 5.0 Slots
- Slot4: PCIe x16 Slot (Slot4) for Target Cable Adapter or DPU (Super NIC)

Slot1 & Slot2: x4 mode
Slot3: Metal-Reinforced Type x8 mode

Built-in Flex-ATX Form Factor Power Supply: 600W

Introduction

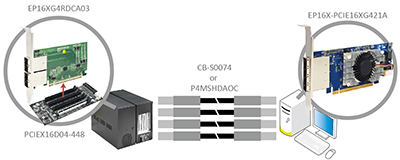

ED01-4A-P1HC1 includes the following two items:

EP16X-PCIE16XG421A
ED01-4A-P1HC

ED01-4A-P1HC is integrated by the following four key parts

ED01--External PCIe Docking Case (five PCI Cutouts)
PS-00060--600W Flex-ATX Form Factor Power Supply
PCIEX16D04-448--PCIe x16 to three PCIe x16 (x4 x4 x8 mode) Slots Expansion Docking Board
EP16XG4RDCA03--External PCI Express (two SFF-8644 1x2) to PCIe x16 Edge Finger Gen 4 Active (Redriver) Cable Adapter Card

No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.
Designed to overcome the limited PCIe connectivity of most desktop computers, the ED01-4A-P1HC1 can be quickly and easily.

Technical Specifications

Slot1~Slot3 for Add-in Card	Two PCIe x16 Slots (x4 mode) One PCIe x16 Slots (x8 mode) Metal-Reinforced Type Support Full-length PCI Form Factor
Target Cable Adapter (EP16XG4RDCA03)	Two SFF-8644 1x2 PCIe Gen 4 Active Redriver
Indicator LEDs	Power LED (Green) in front panel
Power	Power Switch (ON/OFF) in front panel
Cooling Fan	8cm x 8cm in front panel
Power Supply	Flex-ATX Form Factor (LxWxH=150mm81.5mm40.5mm) P1: 600W Input: AC 100-240V, 50-60Hz Output: +5V/15A, +3.3V/15A ( The maximum combined load on +3.3V and +5V outputs shall not exceed 80W.) +12V/50A (The +12V maximum load shall not exceed 600W) Power Plug: PCIe Graphics Card 8pin x 2 pcs PCIe Graphics Card 8(6+2)pin x 2 pcs
Form Factor	12.3 x 35.9 x 23(H) cm
NW	4KG (Unit Package:6KG)

Applications

Kit includes

ED01-4A-P1 y

y: AC power cord 6 feet length

U: North America Plug (NEMA 5-15) --- CB-00260-02
E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
K: British Standard Plug (BS 1363) --- CB-00103
A: Australia Plug (AS3112) --- CB-00272

example:

ED01-4A-P1U
- U: North America Plug (NEMA 5-15) --- CB-00260-02

ED01-4A-P1xxx y

xxx: Target & Host Cable Adapter

HC0: EP16XG4RDCA03(Target Mode) -- Suport PCIe AOC
HC1:EP16XG4RDCA03(Target Mode)+EP16X-PCIE16XG421A(Host Mode) -- Suport PCIe AOC

y: AC power cord 6 feet length

U: North America Plug (NEMA 5-15) --- CB-00260-02
E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
K: British Standard Plug (BS 1363) --- CB-00103
A: Australia Plug (AS3112) --- CB-00272

example:

ED01-4A-P1HC0U
- HC0: EP16XG4RDCA03(Target Mode)
- U: North America Plug (NEMA 5-15) --- CB-00260-02
