Highlights
  • Supports five PCI Cutouts
  • Two PCIe x16 (x8 mode) Slots (Metal-Reinforced Type)
    • Supports Standard height, full length Add-in Card (111.15 x 312mm)
    • Supports 2-Slot/Double GPU Card
  • Built-in Flex-ATX Form Factor Power Supply: 600W
Introduction

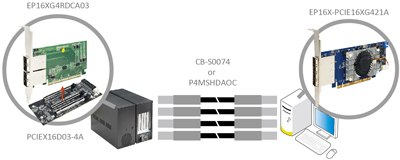

ED01-3C-P1HC1 includes the following two items:

  • EP16X-PCIE16XG421A
  • ED01-3C-P1HC

ED01-3C-P1HC is integrated by the following four key parts

  • ED01--External PCIe Docking Case (five PCI Cutouts)
  • PS-00060--600W Flex-ATX Form Factor Power Supply
  • PCIEX16D03-4A--PCIe x16 to two PCIe x16 (x8 mode) Slots Expansion Docking Board
  • EP16XG4RDCA03--External PCI Express (two SFF-8644 1x2) to PCIe x16 Edge Finger Gen 4 Active (Redriver) Cable Adapter Card

No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.
Designed to overcome the limited PCIe connectivity of most desktop computers, the ED01-4A-P1HC1 can be quickly and easily.

Technical Specifications
Slot1,Slot3 for Add-in Card
  • PCIe x16 Slots (x8 mode) Metal-Reinforced Type
  • Support Full-length PCI Form Factor

Target Cable Adapter (EP16XG4RDCA03)

  • Two SFF-8644 1x2
  • PCIe Gen 4 Active Redriver
Indicator LEDs Power LED (Green) in front panel
Power Power Switch (ON/OFF) in front panel
Cooling Fan 8cm x 8cm in front panel

Power Supply

  • Flex-ATX Form Factor (LxWxH=150mm*81.5mm*40.5mm)
  • P1: 600W
    • Input: AC 100-240V, 50-60Hz
    • Output:
      +5V/15A, +3.3V/15A ( The maximum combined load on +3.3V and +5V outputs shall not exceed 80W.)
      +12V/50A (The +12V maximum load shall not exceed 600W)
    • Power Plug:
      • PCIe Graphics Card 8pin x 2 pcs
      • PCIe Graphics Card 8(6+2)pin x 2 pcs
Form Factor 12.3 x 35.9 x 23(H) cm
NW 4KG (Unit Package:6KG)
Applications

Kit includes

ED01-3C-P1 y

  • y: AC power cord 6 feet length
    • U: North America Plug (NEMA 5-15) --- CB-00260-02
    • E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • K: British Standard Plug (BS 1363) --- CB-00103
    • A: Australia Plug (AS3112) --- CB-00272

    example:

  • ED01-3C-P1U
    • U: North America Plug (NEMA 5-15) --- CB-00260-02
  •

ED01-3C-P1xxx y

  • xxx: Target & Host Cable Adapter
  • y: AC power cord 6 feet length
    • U: North America Plug (NEMA 5-15) --- CB-00260-02
    • E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • K: British Standard Plug (BS 1363) --- CB-00103
    • A: Australia Plug (AS3112) --- CB-00272

    example:

  • ED01-3C-P1HC0U
    • HC0: EP16XG4RDCA03(Target Mode)
    • U: North America Plug (NEMA 5-15) --- CB-00260-02
Related Products
  • CB-S0074---PCIe Gen 4 External Mini-SAS HD (SFF-8644) 4x plug 100ohm Cable
  • P4MSHDAOC PCIe Gen 4 External Mini SAS HD (SFF-8644) 4x plug AOC
