Highlights
  • Supports five PCI Cutouts
  • Two PCIe x16 (x8 mode) Slots (Metal-Reinforced Type)
    • Supports Low Profile Add-in Card
  • Power Supply: 600W
  • Dimension: 2U half-width
    • 22.2 x 30 x 8.76(H) cm
Introduction

EDL1-3C-P1HD is PCIe Gen 4 Bifurcation Fan-out (x8 x8 Mode) Enclosure (2U half-width) w/EP16XG4RDCA04TPL.
The PCIe x16 3-slot Docking Board (PCIEX16D03-4A) provides three PCIe x16 Slots (one for Target Cable Adapter and two for Add-in Card).

EDL1-3C-P1HD expands PCI Express connectivity from your desktop computer, enabling seamless, high performance, and reliable control of PCIe Add-in Card.
No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.
Designed to overcome the limited PCIe connectivity of most desktop computers, the EDL1-3C-P1HD can be quickly and easily.


Technical Specifications
Slot1, Slot3 for Add-in Card
  • Two PCIe x16 (x8 mode) Slots (Metal-Reinforced Type)
    • Supports Low Profile Add-in Card

Slot2 for Target Cable Adapter

  • HD: EP16XG4RDCA04TPL
    • External PCI Express (two SFF-8644 1x2) to PCIe x16 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
Indicator LEDs Power LED (Red) in front panel
Cooling Fan Two 4cm x 4cm in back panel

Power Supply

  • P1: 600W
    • Input: AC 100-240V, 50-60Hz
    • Output:
      +5V/15A, +3.3V/15A ( The maximum combined load on +3.3V and +5V outputs shall not exceed 80W.)
      +12V/50A (The +12V maximum load shall not exceed 600W)
    • Power Plug:
      • PCIe Graphics Card 8pin x 2 pcs
      • PCIe Graphics Card 8(6+2)pin x 2 pcs
Form Factor
  • 2U half-width
  • 22.2 x 30 x 8.76(H) cm
NW 3.5KG
Application

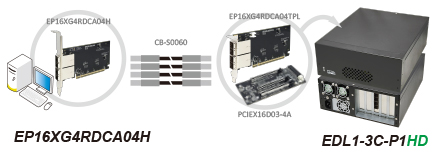

  • EDL1-3C-P1HD1: PCIe Gen 4 Bifurcation Fan-out (x8 x8 Mode) Enclosure with EP16XG4RDCA04TPL(Target Mode) + EP16XG4RDCA04H(Host Mode)
    • EDL1-3C-P1HD: PCIe Gen 4 Bifurcation Fan-out (x8 x8 Mode) Enclosure with EP16XG4RDCA04TPL(Target Mode)
    • EP16XG4RDCA04H: External PCIe x16 Gen4 Redriver Cable Adapter
      • Please be noted that your mainboard needs to have PCIe bifurcation mode support.
Kit includes

ED01-3C-P1HDx y

  • x: Cable Adapter
    • HD0: EP16XG4RDCA04TPL (Target Mode)
    • HD1:
      • EP16XG4RDCA04H (Host Mode) Please be noted that your mainboard needs to have PCIe bifurcation mode support.
        • Low Profile PCI Form Factor: Low Profile PCI Bracket S-BR-00194-23-1020
  • y: AC power cord 6 feet length
    • U: North America Plug (NEMA 5-15) --- CB-00260-02
    • E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • K: British Standard Plug (BS 1363) --- CB-00103
    • A: Australia Plug (AS3112) --- CB-00272
