Highlights
  • Supports five PCI Cutouts
  • One PCIe x16 (x8 mode) Slot (Metal-Reinforced Type)
  • Two PCIe x16 (x4 mode) Slots
  • Supports Low Profile Add-in Card
  • Power Supply: 600W
  • Dimension: 2U half-width
    • 22.2 x 30 x 8.76(H) cm
Introduction

EDL1-4A-P1HC is PCIe Gen 4 Bifurcation Fan-out (x4 x4 x8 Mode) Enclosure (2U half-width) w/EP16XG4RDCA03PL.
The PCIe x16 4-slot Docking Board (PCIEX16D04-448) provides four PCIe x16 Slots (one for Target Cable Adapter and three for Add-in Card).

EDL1-4A-P1HC expands PCI Express connectivity from your desktop computer, enabling seamless, high performance, and reliable control of PCIe Add-in Card.
No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.
Designed to overcome the limited PCIe connectivity of most desktop computers, the EDL1-4A-P1HC can be quickly and easily.


Technical Specifications
Slot1~Slot3 for Add-in Card
  • Two PCIe x16 Slots (x4 mode)
  • One PCIe x16 Slots (x8 mode) Metal-Reinforced Type

Slot4 for Target Cable Adapter

  • HC: EP16XG4RDCA03PL
    • External PCI Express (two SFF-8644 1x2) to PCIe x16 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
Indicator LEDs Power LED (Red) in front panel
Cooling Fan Two 4cm x 4cm in back panel

Power Supply

  • P1: 600W
    • Input: AC 100-240V, 50-60Hz
    • Output:
      +5V/15A, +3.3V/15A ( The maximum combined load on +3.3V and +5V outputs shall not exceed 80W.)
      +12V/50A (The +12V maximum load shall not exceed 600W)
    • Power Plug:
      • PCIe Graphics Card 8pin x 2 pcs
      • PCIe Graphics Card 8(6+2)pin x 2 pcs
Form Factor
  • 2U half-width
  • 22.2 x 30 x 8.76(H) cm
NW 3.5KG

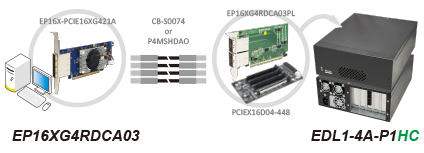

Application

  • EDL1-4A-P1HC1: PCIe Gen 4 Bifurcation Fan-out (x4 x4 x8 Mode) Enclosure with EP16XG4RDCA03PL(Target Mode) + EP16X-PCIE16XG421A(Host Mode):
    • EDL1-4A-P1HC: PCIe Gen 4 Bifurcation Fan-out (x4 x4 x8 Mode) Enclosure with EP16XG4RDCA03PL(Target Mode)
    • EP16X-PCIE16XG421A: External PCI Express x16 (SFF-8644 1x4) to PCIe x16 Gen 4 Switch Host Card
Kit includes

ED01-4A-P1HCx y

  • x: Cable Adapter
    • HC0: EP16XG4RDCA03PL (Target Mode)
    • HC1:
      • EP16X-PCIE16XG421A (Host Mode): External PCI Express x16 (SFF-8644 1x4) to PCIe x16 Gen 4 Switch Host Card
        • Low Profile PCI Form Factor
  • y: AC power cord 6 feet length
    • U: North America Plug (NEMA 5-15) --- CB-00260-02
    • E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
    • K: British Standard Plug (BS 1363) --- CB-00103
    • A: Australia Plug (AS3112) --- CB-00272
