ED01-3B-P1HB PCIe x16 to two x8 Add-in Card Docking Enclosure

Highlights

Supports five PCI Cutouts
Four PCIe x16 (x4 mode) Slots
- Supports Low Profile Add-in Card
Power Supply: 600W
Dimension: 2U half-width
- 22.2 x 30 x 8.76(H) cm

Introduction

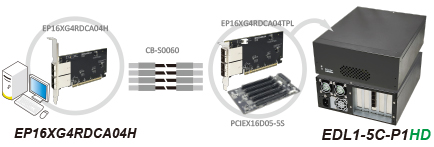

EDL1-5C-P1HD is PCIe Gen 4 Bifurcation Fan-out (x4 x4 x4 x4 Mode) Enclosure (2U half-width) w/EP16XG4RDCA04TPL.
The PCIe x16 5-slot Docking Board (PCIEX16D05-5S) provides five PCIe x16 Slots (one for Target Cable Adapter and four for Add-in Card).

EDL1-5C-P1HD expands PCI Express connectivity from your desktop computer, enabling seamless, high performance, and reliable control of PCIe Add-in Card.
No additional software or drivers are needed – the remote devices operate as if they were directly installed in your computer.
Designed to overcome the limited PCIe connectivity of most desktop computers, the EDL1-5C-P1HD can be quickly and easily.

Technical Specifications

Slot1~Slot4 for Add-in Card	Four PCIe x16 (x4 mode) Slots Supports Low Profile Add-in Card
Slot5 for Target Cable Adapter	HD: EP16XG4RDCA04TPL External PCI Express (two SFF-8644 1x2) to PCIe x16 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
Indicator LEDs	Power LED (Red) in front panel
Cooling Fan	Two 4cm x 4cm in back panel
Power Supply	P1: 600W Input: AC 100-240V, 50-60Hz Output: +5V/15A, +3.3V/15A ( The maximum combined load on +3.3V and +5V outputs shall not exceed 80W.) +12V/50A (The +12V maximum load shall not exceed 600W) Power Plug: PCIe Graphics Card 8pin x 2 pcs PCIe Graphics Card 8(6+2)pin x 2 pcs
Form Factor	2U half-width 22.2 x 30 x 8.76(H) cm
NW	3.5KG

Available Models

EDL1-5C-P1HD1: PCIe Gen 4 Bifurcation Fan-out (x4 x4 x4 x4 Mode) Enclosure with EP16XG4RDCA04TPL(Target Mode) + EP16XG4RDCA04H(Host Mode)

EDL1-5C-P1HD: PCIe Gen 4 Bifurcation Fan-out (x4 x4 x4 x4 Mode) Enclosure with EP16XG4RDCA04TPL(Target Mode)
EP16XG4RDCA04H: External PCIe x16 Gen4 Redriver Cable Adapter
- Please be noted that your mainboard needs to have PCIe bifurcation mode support.

Kit includes

ED01-5C-P1HDx y

x: Cable Adapter

HD0: EP16XG4RDCA04TPL (Target Mode)
HD1:
- EP16XG4RDCA04TPL (Target Mode)

EP16XG4RDCA04H (Host Mode) Please be noted that your mainboard needs to have PCIe bifurcation mode support.
- Low Profile PCI Form Factor: Low Profile PCI Bracket S-BR-00194-23-1020

y: AC power cord 6 feet length
- U: North America Plug (NEMA 5-15) --- CB-00260-02
- E: Europe Plug (CEE 7-VII Schuko) --- CB-00264
- K: British Standard Plug (BS 1363) --- CB-00103
- A: Australia Plug (AS3112) --- CB-00272
