Highlights
  • PCIe x16 Gen 5 Slots
    • One PCIe x16 Gen 5 Slot SMT Type for Target Cable Adapter
    • One PCIe x16 Gen 5 Slot Metal-Reinforced SMT Type for PCIe Add-in Card
  • The REFCLK of both PCIe Slots are from on-board Clock Generator CFC (100MHz)
Introduction

PCIEX16D02-2 is PCIe x16 Expansion Docking Board.

The PCIe Gen 5 slots are backward compatible and support PCIe Gen 5/4/3/2 add-in card, Target Cable Adapter, and DPU (Super NIC).

It supports the following applications.

  • External PCIe Cabling Application:
    A PCIe docking board extends the PCIe slot from the motherboard to an external enclosure.
  • PCIe Fanout Application:
    A PCIe docking board is used for interfacing a DPU (Super NIC) with a PCIe add-in card.
Technical Specifications
  • Slot1 : PCIe x16 Gen 5 Slot Metal-Reinforced SMT Type
    • For PCIe Add-in Card
  • Slot2 : PCIe x16 Gen 5 Slot SMT Type
    • For Target Cable Adapter or DPU (Super NIC)
  • The REFCLK of both PCIe Slots are from on-board Clock Generator CFC (100MHz)
  • ATXPWR1 Power Connector: ATX 24-Pin Power Connector
  • FAN1~2 Fan Power Connector (12V Output): JST compatible wafer 3pin (pitch=2.54mm) connector
  • J4 Fan Module Power Connector: 2pin (pitch=5.08mm) Header
    (This connector allows you to interface with PWM fan control module as below)

  • LEDs
    • J1 Power LED (3.3V indicator)
    • 3.3Vaux LED
  • There are four ways to switch On/Off the ATX Power Supply
    • J2 Power Switch: 3pin Header (pitch=2.54mm)
      • Pin 1-2: Connects to the power switch on the chassis front panel
      • Pin 3: CPWRON# (Cable Power ON)
    • All PCIe Slots Pin B11 (Set to PWRON#)
      • All PCIe Slots Pin B11 could be set to either WAKE# or PWRON#. You can power on/off ATX power supply through PCIe Slots Pin B11 (PWRON#).
    • You can power off ATX power supply through PCIe Slots Pin B30 (PWRBRK#).
    • Power Switch on ATX Power Supply
      • ATX 24pin Power Connector Pin16 (PS-ON) was set to low
  • SW1-1 CFC (100MHz) Setting Switch
    SW1-1 CFC (100MHz)
    ON -0.5% spread
    *OFF Spread Off
  • J3 SMBus Header (1: SMDAT 2: SMCLK 3: GND)
  • Dimensions
    • 55.52(W) x 175.53(L) mm

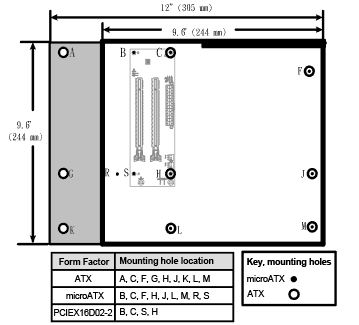

    • It suits for ATX & MicroATX Form Factor Mounting
    • NW: 58.3g
Applications

Target Cable Adapters

PCIe x8

  • EPCIE8XRDCA03---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EPCIE8XRDCA03A---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EPCIE8XG4RDCA02---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EPCIE8XG4RDCA02-O---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card (Support PCIe AOC)

PCIe x16

  • EPCIE16XRDCA02A---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EPCIE16XG4RDCA02---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EP16XG4RDCA03---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card (Support PCIe AOC)
