Highlights
  • PCIe x16 Slots
    • One PCIe x16 Slot SMT Type
    • One PCIe x16 Slot Metal-Reinforced SMT Type
    • Target Cable Adapter could be installed in either Slot1 or Slot2
      • The Target Cable Adapter must have REFCLK Output to it’s Edge Finger.
  • Mini-Fit 6pin Power Connectors
    • 12V & 3.3V & 3.3Vaux Output for PCIe CEM Cable
Introduction

PCIEX16D11P is PCIe x16 Expansion Backplane.

The PCIe slots support PCIe Gen 5/4/3/2 add-in card and Target Cable Adapter.

External PCIe Cabling Application:
A PCIe Expansion Backplane extends the PCIe slot from the motherboard to an external enclosure.
Technical Specifications
  • Slot1 : PCIe x16 Slot Metal-Reinforced SMT Type
  • Slot2 : PCIe x16 Slot SMT Type
  • ATXPWR1: ATX 24-Pin Power Connector
    • Power Input
  • ATX12V: ATX 4-Pin Power Connector
    • +12V Auxiliary Power Input
  • PWR1 ~ PWR3: Mini-Fit 6pin Power Connectors
    • 12V & 3.3V & 3.3Vaux Output for PCIe CEM Cable
  • FAN1~2 Fan Power Connector (12V Output): JST compatible wafer 3pin (pitch=2.54mm) connector
  • J4 Fan Module Power Connector: 2pin (pitch=5.08mm) Header
    (This connector allows you to interface with PWM fan control module as below)
  • J3 SMBus Header (1: SMDAT 2: SMCLK 3: GND)
  • LEDs
    • J1 Power LED (3.3V indicator)
    • 3.3Vaux LED
  • There are four ways to switch On/Off the ATX Power Supply
    • Use Power Switch Pin Header to Turn On/Off Power
    • Use WAKE# to Turn On Power
    • Use PWRBRK# to Turn Off Power
    • Use ATX Power Switch to Turn On/Off Power
  • Dimensions
    • 55.52(W) x 175.53(L) mm
    • It suits for ATX & MicroATX Form Factor Mounting
    • NW: 77g
Available Models

PCIEX16D11P-G4
PCIe x16 Slot SMT Type
Supports PCI Express Gen 4 Bandwidth

PCIEX16D11P-G5
PCIe x16 Slot SMT Type
Supports PCI Express Gen 5 Bandwidth

Applications



Target Cable Adapter could be installed in either Slot1 or Slot2 of PCIEX16D11P.

Note:
The Target Cable Adapter must have REFCLK Output to it’s Edge Finger.

PCIe x4

  • EPCIE4XCA02-T---External PCI Express x4 to PCIe x4 Passive Cable Adapter Card
  • EPCIE4XRDCA01A-T --- External PCI Express x4 to PCIe x4 Gen 2 Active Cable Adapter Card

PCIe x8

  • EPCIE8XG4RDCA01---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EPCIE8XRDCA03A---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EP8X-PCIE8XG302-T---External PCI Express (SFF-8644 1x2) to PCIe x8 Gen 3 Switch Host Card (for Target)

PCIe x16

  • EPCIE16XRDCA02A---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 3 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EPCIE16XRDG4CA02T---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
  • EP16XRDG4CA04T---External PCI Express (Two SFF-8644 1x2) to PCIe x16 Gen 4 Active (Redriver with Linear Equalization) Cable Adapter Card
Related Products

CB-00781-02 -- ATX 24Pin 1 (PSU Female) to 2 (PSU Male) Y Splitter Power Supply Extension Cable, 20cm

CB-00782-02---ATX 12V CPU 8pin Female to 4+4pin Male Power Supply Extension Cable, 18AWG, 20cm

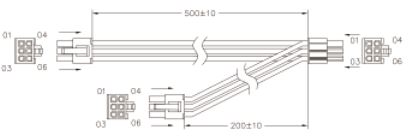

CB-00816-70--- IDE/SAT 6pin/M to two 6pin/M Y-Cables, 500mm+200mm
Fro DIPCIE4XD12

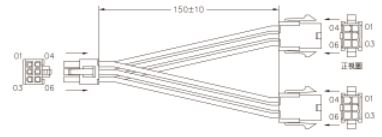

CB-00815-15---IDE/SAT 6pin/Mto two 6pin/F Y-Cables, 15cm
For PCIe CEM Cable

PCIe CEM Cable

P16S2-52XX2XXA ---PCIe Gen 5 x16 Slot to two MCIO 8x Plug Cables & Mini-Fit 6pin Power Plug Cable

P16S2-51XX2XXA---PCIe Gen 5 x16 Slot (x8 mode) to MCIO 8x Plug Cable & Mini-Fit 6pin Power Plug Cable

DP16S2-51XX2XXA---Two PCIe Gen 5 x16 Slot (x4 mode) to MCIO 8x Plug Cable & Mini-Fit 6pin Power Plug Cable
